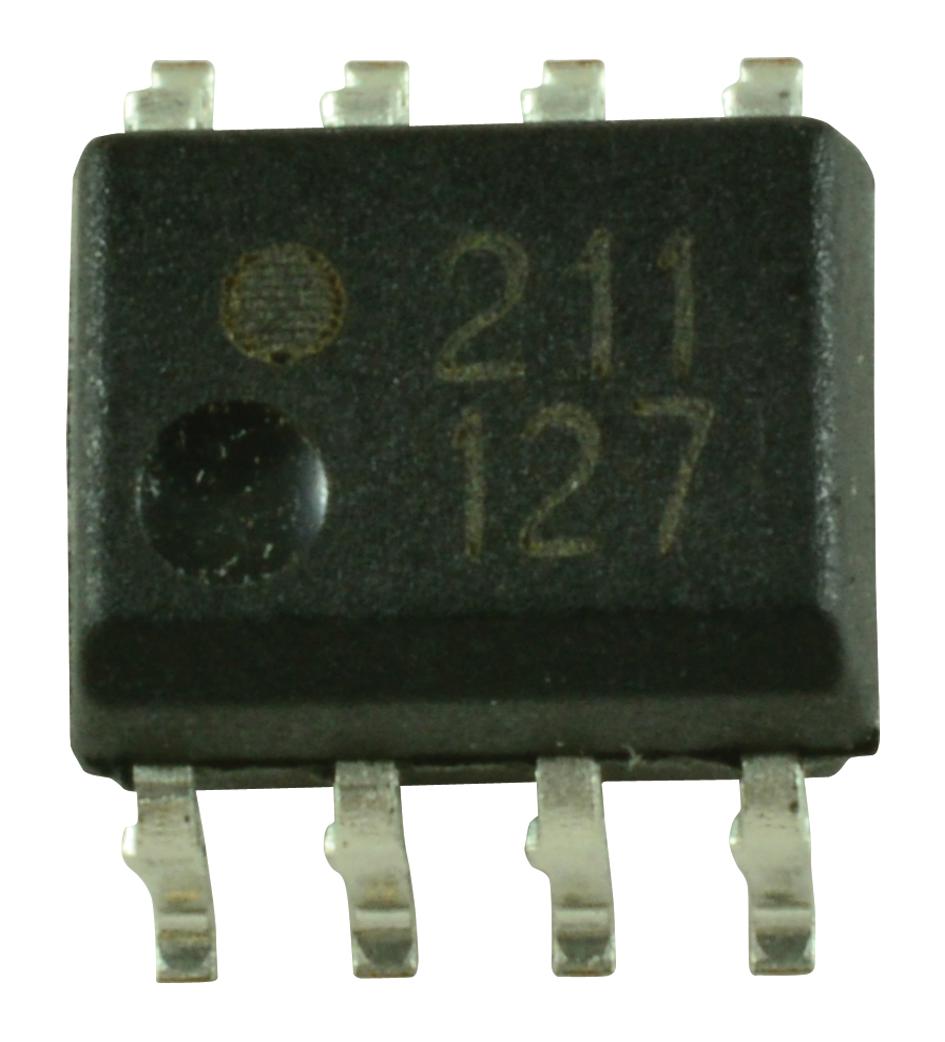

BROADCOM HCPL0211000E Optocoupler Logic Gate
The HCPL-0211-000E is a single-channel 8-pin optocoupler featuring an AlGaAs LED input and a totem pole output stage with built-in Schmitt triggers, providing logic-compatible waveforms. Its internal shield offers high common mode transient immunity of 10 kV/µs at 1000 V. Designed for industrial and electronic applications, it operates reliably within a temperature range of -40°C to 85°C and a supply voltage from 4.5V to 20V, making it compatible with TTL, LSTTL, and CMOS logic. The device boasts low input current, hysteresis, and a typical propagation delay of 150 ns, suitable for high-speed isolation, microprocessor interfacing, ground loop elimination, and power management. Its low power consumption and broad VCC range enhance system performance and efficiency.
BROADCOM HCPL0211000E Optocoupler Logic Gate Specifications:
- Input-Output Isolation Voltage: 3750 V rms for 1 minute per UL1577
- High common mode transient immunity: 10 kV/µs at 1000 V
- Operating Voltage Range: 4.5V to 20V
- Propagation delay: 150 ns typical
- Input Current: 1.6 mA to 1.8 mA
- Temperature Range: -40°C to 85°C
- Device Package: 8-Pin DIP
- Construction: AlGaAs LED with totem pole output stage
- Hysteresis: Yes
- Application: High-speed digital isolation, microprocessor interfaces, ground loop elimination, power control
- RoHS Compliant: Yes, lead-free options available
- Safety approvals: UL Recognized, CSA, IEC/EN/DIN EN 60747-5-5 certified
