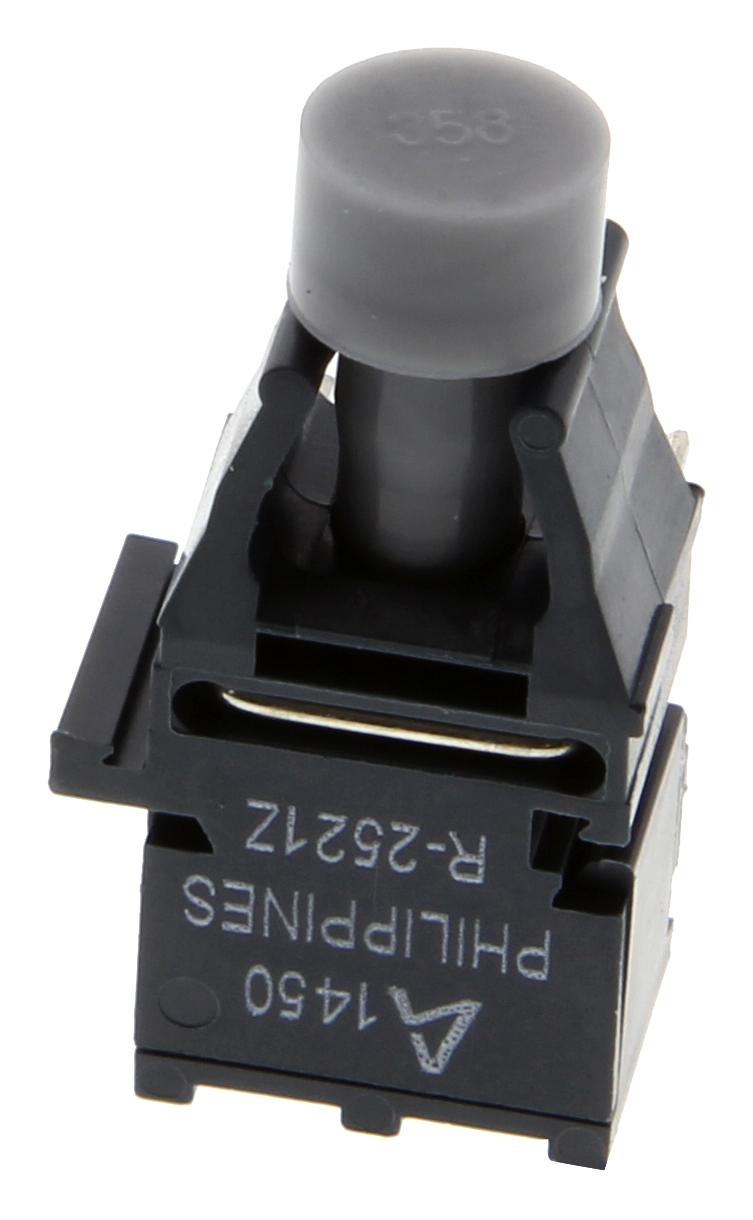

BROADCOM HFBR2521Z fiber optic receiver
The HFBR-2521Z from Avago is a high-performance fiber optic link receiver suitable for industrial and data communication applications. It features a monolithic, DC-coupled digital IC with an open-collector Schottky output transistor, providing robust noise immunity with an internal shield. Designed for high-volume, low-cost manufacturing processes like auto-insertion and wave soldering, it supports communication distances up to 30 meters at 25°C. Operating effectively between -40°C and 85°C, it is ideal for fiber optic, industrial control, and consumer electronics systems, ensuring reliable data transmission with enhanced immunity against electromagnetic interference.
BROADCOM HFBR2521Z fiber optic receiver Specifications:
- Operating Temperature Range: -40°C to 85°C
- Input Optical Power Level: -39 to -13.7 dBm
- Output Voltage Low: 0.4 V
- Output Voltage High: 24 V
- Output Current: 5 to 250 μA
- Supply Voltage: 4.75 V to 5.25 V
- Effective Fiber Diameter: 1 mm
- Numerical Aperture: 0.5
- Internal Pull-up Resistor: 680 to 1700 Ω
- Maximum Storage Temperature: -40°C to 85°C
- Maximum Lead Soldering Temperature: 260°C for 10 seconds
- Power Dissipation: 40 mW
Buy the Buy Avago HFBR2521Z Part Number HFBR-2521Z Online
Purchase the Avago HFBR-2521Z fiber optic receiver online today. Built for industrial and consumer systems, it ensures high-quality data transmission up to 30 meters. With robust noise immunity, a wide temperature range from -40°C to 85°C, and compatibility with standard optical fibers, this device provides dependable performance for fiber optic and industrial control applications. Its low power consumption and compatibility with low-cost manufacturing processes make it ideal for high-volume assembly and demanding environments. Order now for fast shipping and reliable connectivity.
Get Avago HFBR-2521Z today—designed for industrial fiber optic data communication with high noise immunity and reliable distances up to 30 meters.
