BROADCOM HCPL0500000E High Speed Optocoupler
This high-speed single-channel optocoupler offers a transfer rate of 1 Mbps, TTL compatibility, and open-collector output, ensuring reliable electrical isolation for applications like power supply feedback, line receivers, and high-voltage insulation. It features guaranteed performance from 0°C to 70°C, UL Recognized safety approval up to 3750 V rms, and IEC/EN/DIN EN 60747-5-2 compliance. The device is available in 8-Pin DIP, SO-8, Widebody, and hermetic packages, suitable for high-speed logic, analog, and power isolation tasks, with excellent common mode transient immunity of 15 kV/μs.
BROADCOM HCPL0500000E High Speed Optocoupler Specifications:
- Transfer Rate: 1 Mbps
- Isolation Voltage: UL Recognized — 3750 V rms for 1 min, IEC/EN/DIN EN 60747-5-2 compliant
- Temperature Range: 0°C to 70°C
- Input-Output Voltage Withstand: 3750 V rms (8-Pin DIP), 5000 V rms (Option 020, Widebody)
- Package Options: 8-Pin DIP, SO-8, Widebody, Hermetic
- Common Mode Transient Immunity: 15 kV/μs minimum at VoY = 1500 V
- Output Type: Open collector
- Safety Approvals: UL Recognized, CSA Approved, IEC/EN/DIN EN 60747-5-2
- Available in Dual Channel and Hermetic versions
- Insulation Resistance: 2109 Ω at 500 V
- Input-Output Capacitance: 0.5 to 0.6 pF at 1 MHz
- Maximum Input Current: 50 mA (Peak)
- Supply Voltage: up to 30 V (Vcc), with forward input voltage around 1.45 V to 1.85 V

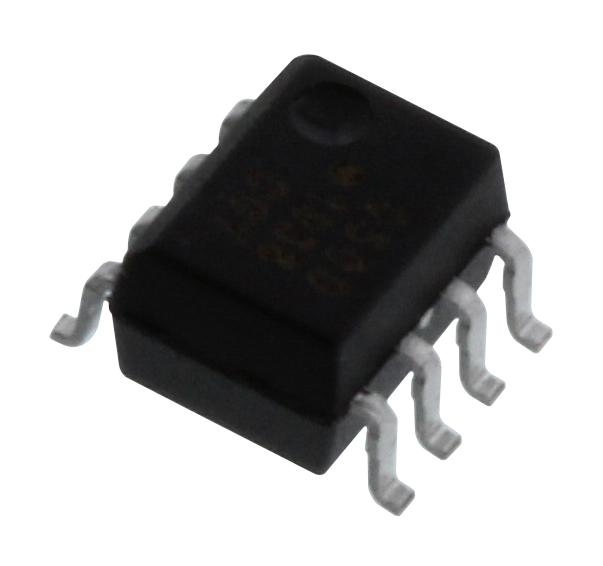

Buy the Buy Agilent High Speed Optocoupler Part Number HCPL0500000E Online
Purchase the Agilent high-speed optocoupler online today to benefit from superior electrical isolation, fast transfer rates of 1 Mbps, and UL safety certification. This device is ideal for high-voltage insulation, line receivers, and power supply feedback systems. With multiple package options including DIP, SO-8, Widebody, and hermetic variants, it ensures versatile applications in industrial and electronic equipment. Enjoy fast delivery and professional support to meet your high-speed digital isolation needs.
Buy Agilent HCPL0500000E now and experience unmatched reliability and performance in high-speed digital isolation applications.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0500000E?
You can click on the BUY or RFQ button to purchase HCPL0500000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0500000E?
You can download the HCPL0500000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0500000E?
BROADCOM
