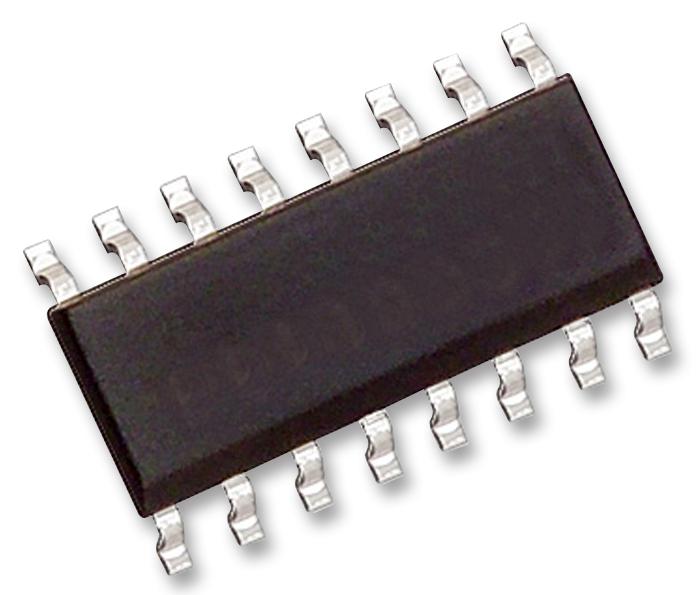

BROADCOM HCPL090J000E Digital Isolator
This is a 4-channel high-speed digital isolator that provides reliable electrical isolation and signal integrity. It features a minimum common mode rejection of 15kV/μs, offers 2500 VRMS isolation voltage, and is compatible with both +3.3V and +5V TTL/CMOS logic levels. The device has a maximum propagation delay of 15 nanoseconds, suitable for high-speed digital applications. It is available in small outline packages with various options, supporting up to 100 MBd data rate, making it ideal for digital fieldbus and high-speed data transmission. Proper handling to avoid ESD damage is recommended.
BROADCOM HCPL090J000E Digital Isolator Specifications:
- Channels: 4
- Isolation Voltage: 2500 VRMS
- Common Mode Rejection: ≥15kV/μs
- Maximum Data Rate: 100 MBd
- Propagation Delay: Max 15 ns
- Pulse Width Distortion: 2-3 ns
- Propagation Delay Skew: Max 4 ns
- Output Rise and Fall Time: Max 3 ns
- Package Options: Small Outline SOIC-16, Wide and Narrow Body
- Operating Temperature: -55°C to +125°C
- Supply Voltage: +3.3V or +5V (compatible logic levels)
- Input Voltage Range: 0V to Vcc
- ESD Sensitivity: 2 kV (Human Body Model)
- Thermal Resistance: 150-240 °C/W depending on package
- Lead Solder Temperature: Up to 260°C for 10s
Buy the Avago Series High Speed Digital Isolator: HCPL090J000E
Purchase the Avago Series digital isolator HCPL090J000E online today and equip your high-speed digital applications with superior electrical isolation and signal integrity. With a maximum data rate of 100 MBd, 2500 VRMS isolation voltage, and a propagation delay of just 15 nanoseconds, this high-performance device is suitable for digital fieldbus, multiplexed data transmission, and computer peripheral interfaces. Its compact SOIC package options and supported operating temperature range from -55°C to +125°C ensure versatile and reliable integration. Buy now and enhance your electronic system's safety and speed.
Order your Avago Series High Speed Digital Isolator HCPL090J000E today and ensure your digital systems have reliable isolation and ultra-fast performance.
