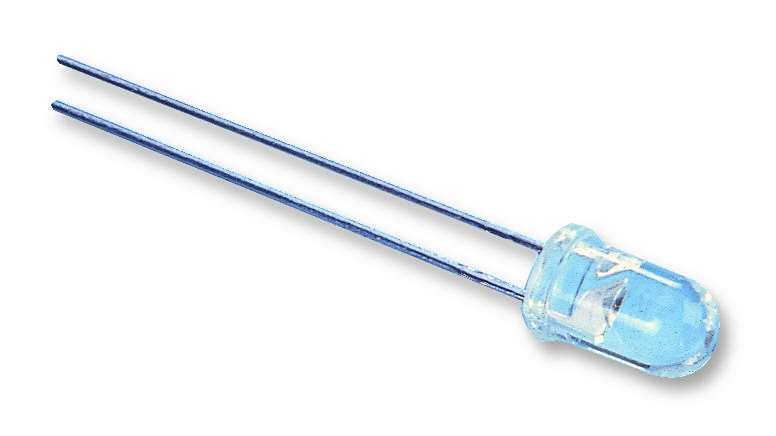

BROADCOM HLMPD105 High-Intensity Red LED
High-intensity, deep red LED lamps utilizing advanced double heterojunction AlGaAs/GaAs technology, offering outstanding brightness, wide viewing angles, low forward voltage, and excellent material efficiency. Suitable for ambient lighting, message panels, portable equipment, and general illumination, these LEDs operate at a dominant wavelength of 637 nanometers and can be driven with DC or pulse currents for optimal output. They are compatible with CMOS/MOS logic, TTL, and feature various package options including T-13/4 and T-1, with robust electrical and thermal performance for demanding industrial and commercial applications.
BROADCOM HLMPD105 High-Intensity Red LED Specifications:
- Peak Forward Current: 300 mA
- Average Forward Current: 20 mA
- Power Dissipation: 87 mW
- Forward Voltage: 18 - 22 V at 20mA
- Reverse Breakdown Voltage: 5.0 - 15.0 V
- Peak Wavelength: 645 nm
- Dominant Wavelength: 637 nm
- Spectral Line Halfwidth: 20 nm
- Luminosity Range: 35.2 to 240.0 mcd depending on model
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Junction Temperature: 110°C
- Lead and package options conform to standards, with wave and manual soldering guidelines provided.
- Mechanical dimensions adhere to industry standards, with lead spacing and package types specified for seamless integration.
- Electrical characteristics including forward voltage, spectral properties, and thermal resistance ensure reliable device operation.
- Maximum pulse current: 500 mA with pulsed operation, subject to thermal derating.
Buy the Avago HLMPD105 – Reliable Deep Red LED for Industrial Applications
Purchase the Avago HLMPD105 high-intensity red LED online now to enhance your lighting and display projects. Featuring a dominant wavelength of 637 nm, these LEDs deliver outstanding brightness with low forward voltage. Suitable for industrial, commercial, and portable applications, they are compatible with CMOS and TTL logic. With robust electrical and thermal characteristics, easy integration, and various package options, they ensure reliable performance under demanding conditions. Buy online today for quick delivery and trusted quality to elevate your electronics or illumination solutions.
Order your Avago Series HLMPD105 high-brightness LED today and give your projects the dependable, long-lasting illumination they deserve.
Frequently Asked Questions
Where can I buy BROADCOM HLMPD105?
You can click on the BUY or RFQ button to purchase HLMPD105 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPD105?
You can download the HLMPD105 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPD105?
BROADCOM
