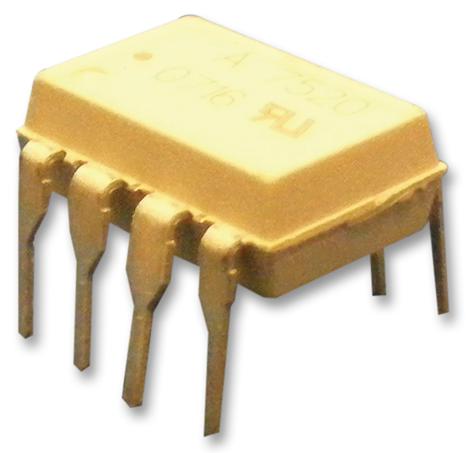

BROADCOM HCPL2730000E Dual Channel Optocoupler
These dual channel optocouplers contain a separated pair of GaAsP light emitting diodes optically coupled to a pair of integrated high gain photo detectors. They provide extremely high current transfer ratio and excel- lent input-output common mode transient immunity. A separate pin for the photodiodes and first gain stages (V7) permits lower output saturation voltage and higher speed operation than conventional photo-darlington types. Available in DIP and SO-8 packages, they are ideal for ground isolation, level shifting, RS-232C interfaces, and long line communication, guaranteeing high performance in industrial automation and data transmission systems. Excellent for low input current applications with high CTR and high output current capabilities.
BROADCOM HCPL2730000E Dual Channel Optocoupler Specifications:
- Input-Output Momentary Voltage: 3750 Vrms (Option 020) to 5000 Vrms (highest ratings)
- Input-Output Resistance: 10^9 Ω at 500 VDC
- Input-Input Insulation Resistance: 10^10 Ω at 500 VDC
- Input-Input Capacitance: 0.03 to 0.25 pF
- Maximum Operating Temperature: 70°C
- Storage Temperature: -55°C to 125°C
- Input Forward Voltage: Typically 1.6V at 0.5mA
- Input Reverse Voltage: 5V
- Output Current: Up to 60mA per channel
- V7 Rating: 7V for HCPL-2730/0730, 18V for HCPL-2731/0731
- Power Dissipation: 35mW per channel; Total 135mW
- Solder Temperature: 260°C for 10 seconds
- Reflow Profile: 200°C peak with controlled ramp
- Isolation Group: Illa; IEC/EN/DIN approved
- Polymer insulation with creepage & clearance standards
- UL Recognized: 3750V rms/1 min, CSA approved
- Package Options: DIP-8, SO-8, surface mount
- Climatic and pollution degree rated 55/100/21
- Transient Overvoltage: 8000V peak
Buy the Avago HCPL2730 – Reliable Low Input Current Optocoupler for Industrial Applications
Experience superior performance with the Avago HCPL2730, a dual channel optocoupler designed for high current transfer ratio, low input current, and excellent transient immunity. Ideal for ground isolation, level shifting, RS-232C data links, and long-distance communication systems, it ensures reliable operation across temperature ranges up to 70°C. Available in DIP and SO-8 packages, these optocouplers facilitate easy surface mounting and surface-mount surface mounting in compact footprints. They are UL and CSA certified, making them suitable for demanding industrial environments where safety, high speed, and durability are essential. Purchase online today and secure a trusted, high-performance component for your industrial automation or communication system.
Get Avago HCPL2730 today—built for precision and long-lasting durability in industrial signal isolation and high-speed data transmission.
Frequently Asked Questions
Where can I buy BROADCOM HCPL2730000E?
You can click on the BUY or RFQ button to purchase HCPL2730000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL2730000E?
You can download the HCPL2730000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL2730000E?
BROADCOM
