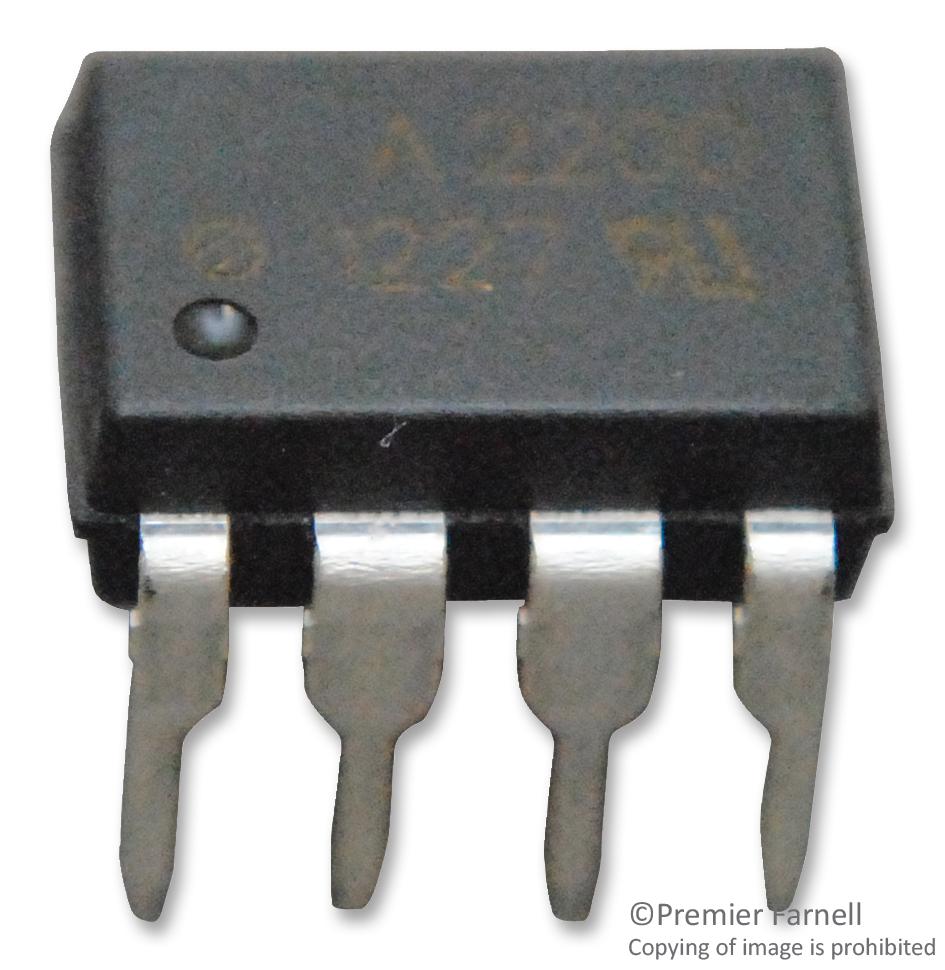

BROADCOM HCPL2200000E High-Speed Logic Isolator
The HCPL-2200-000E is a low-current, high-speed optocoupler that combines a Gallium Arsenide Phosphide (GaAsP) LED with an integrated high-gain photo-detector featuring a three-state output stage and hysteresis. The three-state output eliminates the need for a pull-up resistor and enables direct driving of data buses. Its hysteresis improves noise immunity and prevents output chatter. Operating at low input current of 1.6mA and across a wide supply voltage range, it is compatible with TTL, LSTTL, and CMOS logic levels, offering lower power consumption compared to other high-speed optocouplers. It is ideal for isolating high-speed logic signals, buffering input and output lines, and implementing isolated line receivers in noisy environments.
BROADCOM HCPL2200000E High-Speed Logic Isolator Specifications:
- Input Current: 1.6 mA
- Hysteresis
- Common Mode Transient Immunity: 2.5 kV/μs at 400 V
- Propagation Delay: 160 ns (typical)
- Supply Voltage Range: 4.5 V to 20 V
- Operating Temperature Range: 0°C to 85°C
- UL Recognized: 3750 V rms for 1 min
- CSA Approved
- Isolation Voltage: 3750 V rms
- Leakage Current: 100 pA (at Vo=5.5V, Io=5mA)
- Output Power: 600 mW
- Input Resistance: approximately 1.5 kΩ
- Total Package Dissipation: 210 mW
- Dimensions: Standard 8-Pin DIP package, 9.65 mm length
- Thermal Ratings: Max case temperature 175°C
Buy the Avago Series HCPL-2200 Low-Current High-Speed Optocoupler: HCPL2200000E
Order the Avago HCPL-2200-000E online today and benefit from its low input current design, high-speed data transmission, and excellent noise immunity. Perfect for isolating high-speed logic signals, buffering data lines, and ensuring reliable operation in noisy environments. This durable, RoHS-compliant optocoupler provides safe separation with UL and CSA approvals, ensuring high quality and safety standards. Elevate your electronic systems with this efficient, low-power solution designed for industrial, computing, and communication applications. Available now for quick delivery!
Buy Avago HCPL-2200-000E now and experience unmatched reliability and performance with low input current and excellent noise immunity for your high-speed logic isolation needs.
