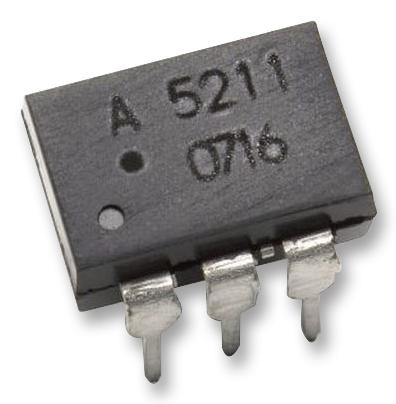

BROADCOM ASSR1611001E Solid State Relay
The ASSR-1611 is a high current solid-state relay designed for industrial applications, capable of switching 60V and 2.5A loads. It offers fast switching times, low input current, and high insulation voltage. Suitable for controlling AC or DC loads, it features opto-isolation, UL and CSA certification, and a compact DIP or gullwing surface-mount package. This relay replaces electromechanical relays in factory automation, data acquisition, and medical systems, providing reliable and efficient switching with high transient immunity and robust electrical characteristics over a wide temperature range.
BROADCOM ASSR1611001E Solid State Relay Specifications:
- Voltage Rating: 60V
- Current Rating: 2.5A
- Input Current: 5mA minimum, 20mA maximum
- Input Voltage (OFF): 0 to 0.8V
- Turn On Time: 3.2ms typical
- Turn Off Time: 0.1ms typical
- Isolation Voltage: 3750 Vams (UL), 5000 Vams optional
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Output Resistance: 0.065Ω (connection A), 0.035Ω (connection B)
- Output Capacitance: 1400pF
- Maximum Output Voltage: ±60V
- Maximum Output Power: 625mW (connection A), 380mW (connection B)
- Lead Soldering Temperature: 260°C for 10 sec
- Package Types: DIP-6, Gullwing Surface Mount
- Compliance: RoHS 6, UL Recognized, CSA compliant
Buy the Avago ASSR-1611 – Reliable Solid State Relay for Industrial Applications
Order the ASSR-1611 solid-state relay online today to elevate your industrial control systems with fast switching speeds, high current capacity, and certified safety standards. This reliable relay offers low input current, excellent insulation, and versatile applications in factory automation, medical equipment, and security systems. Its compact design and robust electrical characteristics ensure seamless integration into your projects, providing consistent operation across wide temperature ranges. Get your ASSR-1611 now for efficient, dependable switching solutions that meet regulatory and industry standards.
Buy Avago ASSR-1611 now and experience unmatched reliability and performance with fast switching and high load capacity.
Frequently Asked Questions
Where can I buy BROADCOM ASSR1611001E?
You can click on the BUY or RFQ button to purchase ASSR1611001E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASSR1611001E?
You can download the ASSR1611001E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASSR1611001E?
BROADCOM
