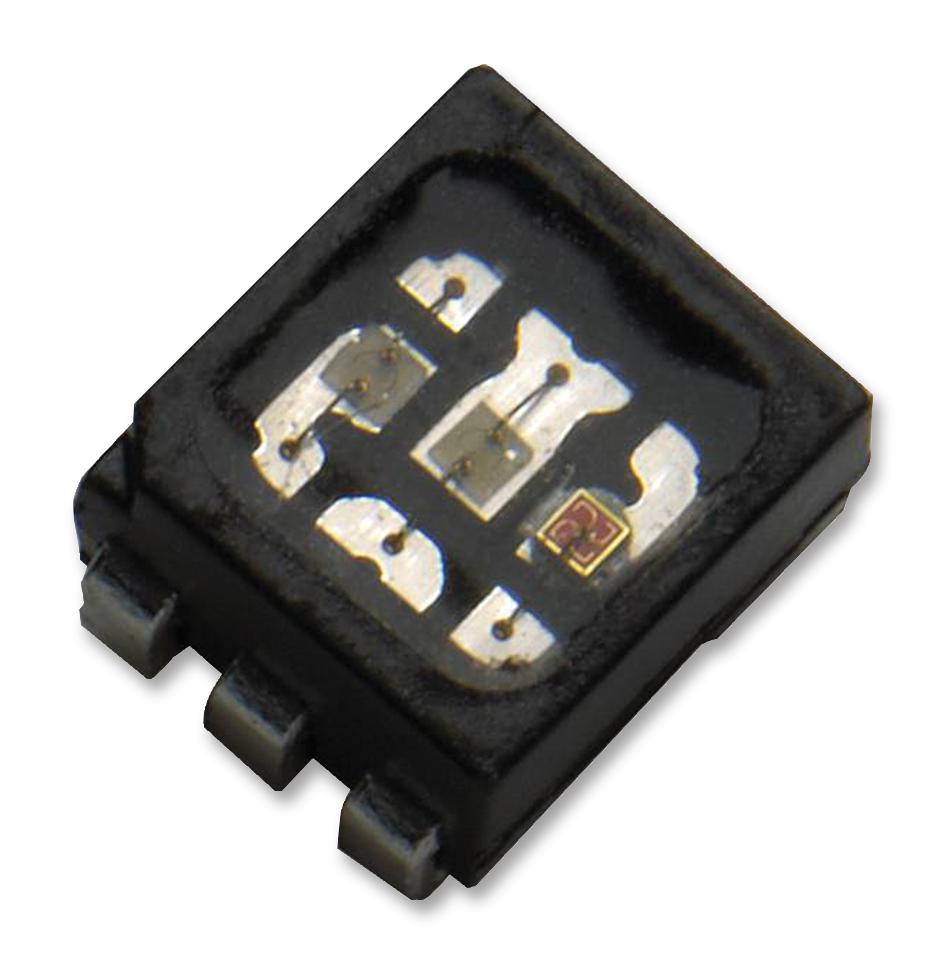

BROADCOM ASMTYTC70AA02 RGB Full Color LED
The Tricolor PLCC6 Black Body LED family features SMT packages with separated heat paths for higher current operation and individually addressable pins for flexible circuitry. Designed with diffused silicone encapsulation, these LEDs offer a 110° viewing angle and IPX6 water resistance. Suitable for indoor full-color displays, they are compatible with reflow soldering, and their black body enhances contrast for short-distance viewing. These LEDs utilize AllnGaP and InGaN technologies, ensuring reliable performance in various lighting and display applications. Proper handling and ESD precautions are essential for longevity.
BROADCOM ASMTYTC70AA02 RGB Full Color LED Specifications:
- Package: PLCC-6 (Plastic Leaded Chip Carrier)
- Encapsulation: Silicone
- Viewing angle: 110°
- Water Resistance: IPX6 IEC 60529
- Waterproof test: PCB mounted with proper potting
- Main technologies: AllnGaP, InGaN
- Package dimensions: 2.30 mm x 3.40 mm x 0.50 mm
- Flux characteristic: Min 224 mcd (Red), Min 560 mcd (Green), Min 112.5 mcd (Blue)
- Dominant wavelength: 617–630 nm (Red), 525–537 nm (Green), 465–475 nm (Blue)
- Forward voltage: 18–21V (Red), 28–28V (Green & Blue) at 20 mA
- Peak forward current: 100 mA, continuous current: 50 mA (Red), 25 mA (Green & Blue)
- Maximum junction temperature: 110°C
- Operating temp: -40°C to +100°C
- Storage temp: -40°C to +100°C
- Reflow soldering compatible, with specific temperature profiles
- Solder terminals: Silver plated, sensitive to tarnish if exposed long-term
- Moisture Sensitivity Level: MSL 3
- Application: Full color display, indoor lighting
Buy the Avago ASMT-YTC7-OAA02 – Reliable RGB Full Color LED for Industrial Applications
Secure your Avago ASMT-YTC7-OAA02 LEDs today through our online store. These high-quality, IPX6-rated LEDs feature a black body design, 110° viewing angle, and are reflow compatible, making them perfect for indoor full-color displays. Their silicone encapsulation and individual pin-out flexibility ensure excellent performance and easy installation. Whether for professional displays or lighting systems, purchasing online guarantees swift delivery and authentic quality, empowering your projects with vibrant, reliable lighting solutions from a trusted manufacturer.
Buy Avago ASMT-YTC7-OAA02 now and experience unmatched reliability, high contrast, and versatile performance in your display and lighting projects.
Frequently Asked Questions
Where can I buy BROADCOM ASMTYTC70AA02?
You can click on the BUY or RFQ button to purchase ASMTYTC70AA02 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASMTYTC70AA02?
You can download the ASMTYTC70AA02 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASMTYTC70AA02?
BROADCOM
