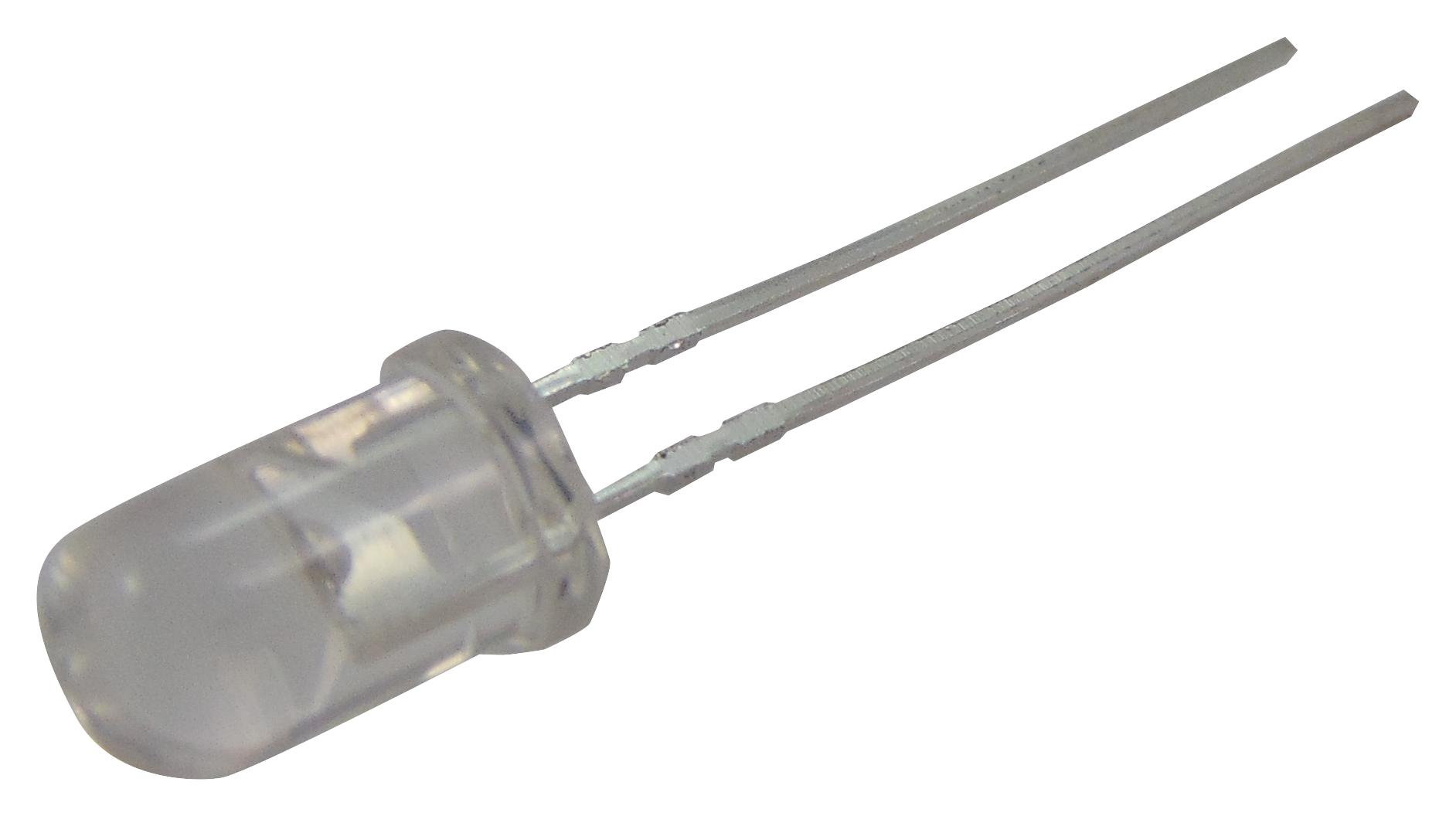

BROADCOM HLMPEG3GVX0DD High Brightness LED
These high-brightness AllnGaP LEDs offer superior outdoor performance with excellent sunlight readability, stable high-temperature operation up to 130°C, and UV-resistant epoxy. Available in red and amber with various viewing angles (15°, 23°, 30°), they are ideal for traffic signals, pedestrian lights, outdoor signage, and advertising. The LEDs feature well-defined spatial radiation patterns, moisture resistance, and are suitable for auto-insertion onto PC boards, making them reliable choices for outdoor and industrial applications, ensuring long-lasting brightness and visibility.
BROADCOM HLMPEG3GVX0DD High Brightness LED Specifications:
- Color: Red (626 nm) and Amber (590 nm)
- Viewing angles: 15°, 23°, 30°
- Maximum junction temperature: +130°C
- Operating temperature range: -40°C to +100°C
- Power Dissipation: 120 mW
- Forward Voltage: 18-24 V at 20 mA
- Peak forward current: 100 mA
- Luminous efficacy: Red 190 lm/W, Amber 490 lm/W
- Epoxy material with UV inhibitor, high moisture resistance
- Lead material: tin-plated mild steel, preformed or cut to length
- Package: Standoff and non-standoff options
- RoHS compliant, lead-free, fully RoHS 6 compliant
- Maximum ambient temperature: +100°C
- Storage temperature: -40°C to +100°C
Buy the Avago Series High Brightness AllnGaP LED: HLMPEG3GVX0DD
Discover the premium quality High Brightness LED with superior sunlight readability, stable high-temperature operation, UV-resistant epoxy, and moisture resistance. Perfect for outdoor traffic signals, signage, and advertising where durability and visibility are essential. These LEDs feature well-defined radiation patterns, multiple viewing angles, and come in efficient red and amber colors. Easy to mount on PC boards and suitable for automated assembly with lead preforming options. Enhance your outdoor lighting solutions with our reliable, RoHS-compliant LEDs designed to thrive in harsh environments, ensuring long-lasting brightness and performance.
Order your Avago Series High Brightness AllnGaP LED today and ensure your outdoor signage and traffic signals deliver reliable, long-lasting visibility.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEG3GVX0DD?
You can click on the BUY or RFQ button to purchase HLMPEG3GVX0DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEG3GVX0DD?
You can download the HLMPEG3GVX0DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEG3GVX0DD?
BROADCOM
