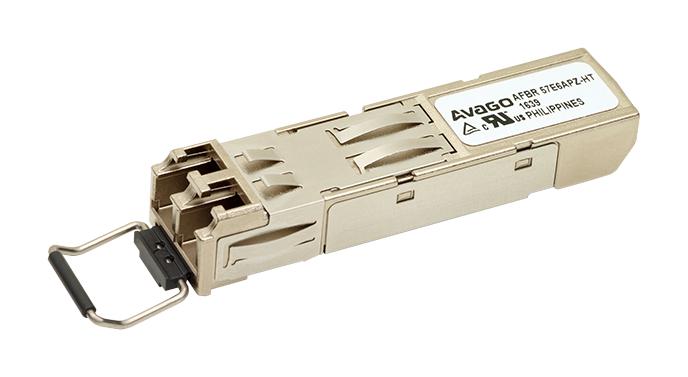

BROADCOM AFBR57E6APZHT fiber optic transceiver
The AFBR-57E6APZ-HT is a multimode small form factor pluggable transceiver with LC connector designed for FDDI and fast Ethernet networks. Featuring a 1310-nm InGaAsP LED transmitter and an InGaAs PIN photodiode receiver, it supports digital diagnostics including real-time temperature, optical power levels, LED bias current, and loss of signal monitoring via an SFF-8472 compatible 2-wire serial interface. Its compact SFP package ensures hot-plug capability, operating within -40°C to 95°C and powered by a single 3.3V supply, suitable for industrial automation, networking, and fiber optic applications.
BROADCOM AFBR57E6APZHT fiber optic transceiver Specifications:
- Form Factor: Small Form Factor Pluggable (SFP)
- Connector: LC duplex optical interface
- Wavelength: 1310 nm
- Fiber Types Supported: 50/125 um and 62.5/125 um multimode fiber
- Operating Temperature Range: -40°C to 95°C
- Power Supply: +3.3V DC
- Supply Current: typically 31-40 mA
- Maximum Power Dissipation: 145 mW
- Receiver Optical Input Power: -31.0 to -12.0 dBm
- Transmitter Optical Power: -20.0 to -14.0 dBm (50/125 um), -20.0 to -17.0 dBm (62.5/125 um)
- Data Rate: 125 MBd
- Digital Diagnostics: supports real-time temperature, optical power, LED bias current, and LOS monitoring
- Transmission and reception: differential LVPECL outputs and inputs, AC coupling within module
- Connectivity: hot-pluggable, RoHS compliant, lead-free, UL and CSA recognized
- Module Dimensions: conform with SFP MSA, detailed in datasheet
Buy the Broadcom Series AFBR-57E6APZ-HT Fiber Transceiver: AFBR57E6APZHT
Order the Broadcom AFBR-57E6APZ-HT fiber optic transceiver online today for seamless integration into your fiber optic networks. Designed for reliable multimode operations, this compact SFP module features digital diagnostics, high-speed data transfer, and supports fiber types like 50/125 um and 62.5/125 um multimode fiber. Its robust construction ensures operation from -40°C to 95°C with a single 3.3V power supply. Perfect for industrial automation, fast Ethernet, and FDDI applications, ensuring dependable performance and easy hot-swapping without system downtime.
Get Broadcom AFBR-57E6APZ-HT fiber transceiver today—optimized for fast Ethernet and reliable multimode fiber optic networking communications.
Frequently Asked Questions
Where can I buy BROADCOM AFBR57E6APZHT?
You can click on the BUY or RFQ button to purchase AFBR57E6APZHT from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part AFBR57E6APZHT?
You can download the AFBR57E6APZHT datasheet or visit the BROADCOM website for support.
Who is the manufacturer of AFBR57E6APZHT?
BROADCOM
