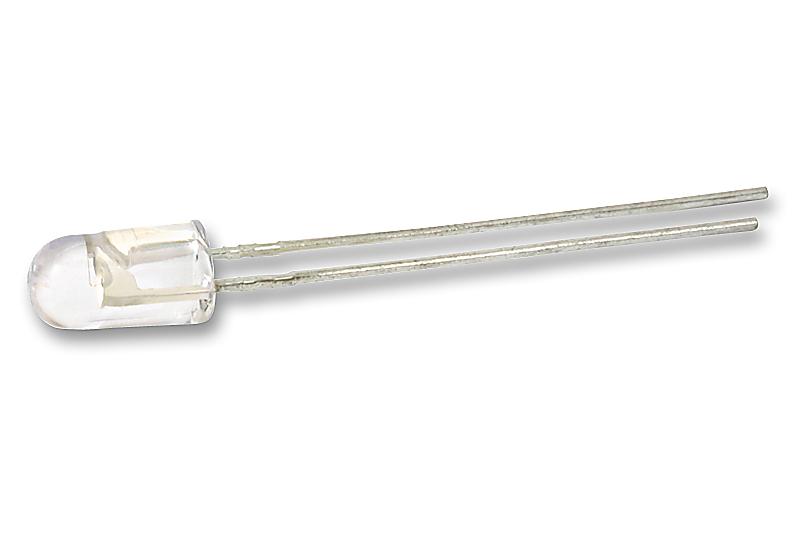

BROADCOM HLMPBG01MN000 Mini Oval LED
These 5mm mini oval LEDs are designed for full color/video signs and passenger information displays. Featuring a 35°x70° radiation pattern and high luminous intensity, they excel in outdoor applications requiring broad viewing angles and sunlight readability. Made with aluminum indium gallium phosphide (AllnGaP) for red and amber, these LEDs offer superior moisture and UV resistance with advanced optical epoxy. Available in parallel or perpendicular orientations, they ensure consistent color mixing, message uniformity, and high efficiency for outdoor digital signage and full color video displays.
BROADCOM HLMPBG01MN000 Mini Oval LED Specifications:
- Viewing angles: Major 70°, Minor 35°
- Peak Wavelength: Red 630 nm, Amber 590 nm
- Luminous Intensity: Red 680–4200 mcd, Amber 680–2500 mcd
- Forward Voltage: Red 20–26 V, Amber 20–24 V
- Peak Wavelength of Amber 594 nm, Red 639 nm
- Power Dissipation: 120 mW
- LED Junction Temperature: -40°C to +100°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Peak Pulsed Forward Current: 100 mA
- Maximum Lead Size: 0.98 to 1.15 mm diameter
- Package Style: Mini Oval, options include parallel and perpendicular
Buy the AllnGaP Series Mini Oval LED: HLMPBG01MN000
Order the Mini Oval LED HLMPBG01MN000 now to enhance your outdoor full color signage and video displays. Designed with a 35°x70° radiation pattern, high luminous intensity, and UV-resistant epoxy, this LED is perfect for digital signs that require broad visibility and sunlight readability. Compact and reliable, it offers excellent moisture resistance and consistent color mixing for premium outdoor digital advertising. Purchase online today for fast delivery and dependable performance in your outdoor lighting projects.
Get AllnGaP Mini Oval LED HLMPBG01MN000 today—built for outdoor digital signage with wide angles, high brightness, and long-lasting resistance.
Frequently Asked Questions
Where can I buy BROADCOM HLMPBG01MN000?
You can click on the BUY or RFQ button to purchase HLMPBG01MN000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPBG01MN000?
You can download the HLMPBG01MN000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPBG01MN000?
BROADCOM
