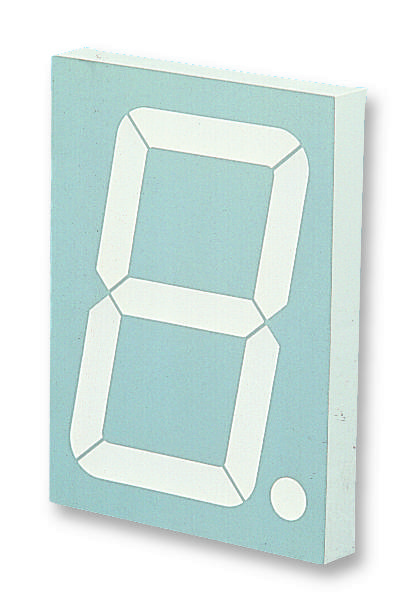

BROADCOM HDSP815E Seven Segment Display
These 20 mm (0.8 inch) general purpose seven segment displays utilize industry standard size and pinout configurations, available in common anode or cathode types. Suitable for indoor applications, they come in red and green colors with gray face paint for high contrast. Featuring mitered font and 50° viewing angles, they are ideal for digital readouts in various electronics projects. The displays are subjected to quality assurance with strict inspection, making them reliable for indoor use but not recommended for industrial environments or extreme temperature cycling.
BROADCOM HDSP815E Seven Segment Display Specifications:
- Size: 20 mm (0.8 inch)
- Type: Common Anode or Common Cathode
- Colors: Red, Green
- Face Color: Gray
- Viewing Angle: 50°
- Pin Spacing: 2.54 mm (0.1 inch)
- Pin Layout: Industry standard
- Operating Temperature: -25°C to +85°C
- Storage Temperature: -25°C to +85°C
- Wave Soldering Temperature: 250°C for 3 seconds
- Luminous Intensity: 23 to 48 med (red), 15 to 33 med (green) at 20mA
- Forward Voltage: 2.1 to 3.0 V (red), 2.6 V (green)
- Peak Wavelength: 635 nm (red), 566 nm (green)
- Dominant Wavelength: 626 nm (red), 571 nm (green)
- Peak Forward Current: 100 mA (red), 90 mA (green)
- Average Power per Segment: 62.5–65 mW
- Reverse Voltage: 3 V
- Maximum Power Dissipation: Not specified
- Soldering: Not recommended to solder more than twice, with a 15-minute interval
Buy the Avago HDSP815E – Reliable Seven Segment Display for Industrial Applications
Experience reliable digital display technology with the Avago HDSP815E seven segment display. Designed for indoor use, featuring industry-standard size and pinout, with options in red and green. These displays are ideal for digital meters, control panels, and electronic projects demanding clear readouts. Their high contrast gray face and 50° viewing angle ensure excellent visibility, with robust quality assurance. Order online today to enhance your electronic applications with trusted, high-quality seven segment displays designed for precision and durability.
Get Avago HDSP815E today—built for precision and long-lasting durability in electronic displays and digital readouts.
Frequently Asked Questions
Where can I buy BROADCOM HDSP815E?
You can click on the BUY or RFQ button to purchase HDSP815E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSP815E?
You can download the HDSP815E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSP815E?
BROADCOM
