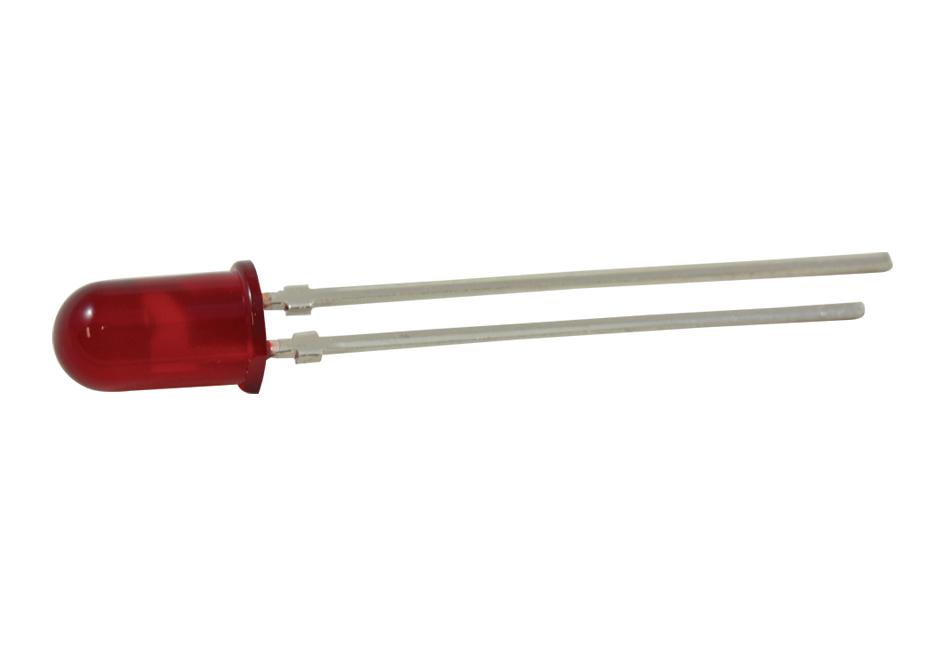

BROADCOM HLMP3600 LED Indicator Lamp
The HLMP-3600 is a 5mm red LED lamp with an integrated current-limiting resistor, made from GaAsP on a GaAs substrate. It features a tinted/diffused lens, wide viewing angle, and durable leads for wire wrap applications. Suitable for direct operation from 5V power sources without external parts, it complies with TTL compatibility for various LED indicator and lighting uses. Designed for industrial and electronic applications, this T-13/4 package offers reliable performance, easy mounting, and excellent visibility, making it a cost-effective and space-saving solution.
BROADCOM HLMP3600 LED Indicator Lamp Specifications:
- Package Dimensions: Length 24.1 mm, Width 5.08 mm, Height 3.43 mm
- Material: GaAsP on GaAs substrate
- Lens Type: Diffused/Tinted
- Operating Voltage: 5V
- Forward Voltage: 7.5 Volts
- Reverse Voltage: 5 Volts
- Luminous Intensity: 1600 cd maximum
- Peak Wavelength: 583 nm
- Dominant Wavelength: 585 nm
- Viewing Angle: Wide off-axis
- Lead Type: Durable leads for wire wrap applications
- Mounting: Front panel using HLMP-0103 clip and ring
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- TTL Compatibility: Yes
- Constructed from GaAsP on GaAs substrate
- Suitable for LED indicator lighting and industrial applications
Buy the Buy Avago Technologies HLMP-3600 Part Number HLMP3600 Online
Purchase the Avago HLMP-3600 LED indicator lamp online today for your industrial or electronic projects. This 5mm red LED features an integral resistor, making it compatible with 5V supplies without external components. Its diffused lens provides a wide viewing angle, ensuring excellent visibility. Suitable for front panel mounting with durable leads, it offers reliable performance in various temperature ranges. Trusted for industrial indicator applications, this cost-effective and space-efficient LED lamp ensures long-lasting durability and consistent brightness, making it an ideal choice for automation and signaling systems.
Get Avago HLMP-3600 today—built for industrial indicator applications with reliable integrated resistor and wide viewing angle.
Frequently Asked Questions
Where can I buy BROADCOM HLMP3600?
You can click on the BUY or RFQ button to purchase HLMP3600 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP3600?
You can download the HLMP3600 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP3600?
BROADCOM
