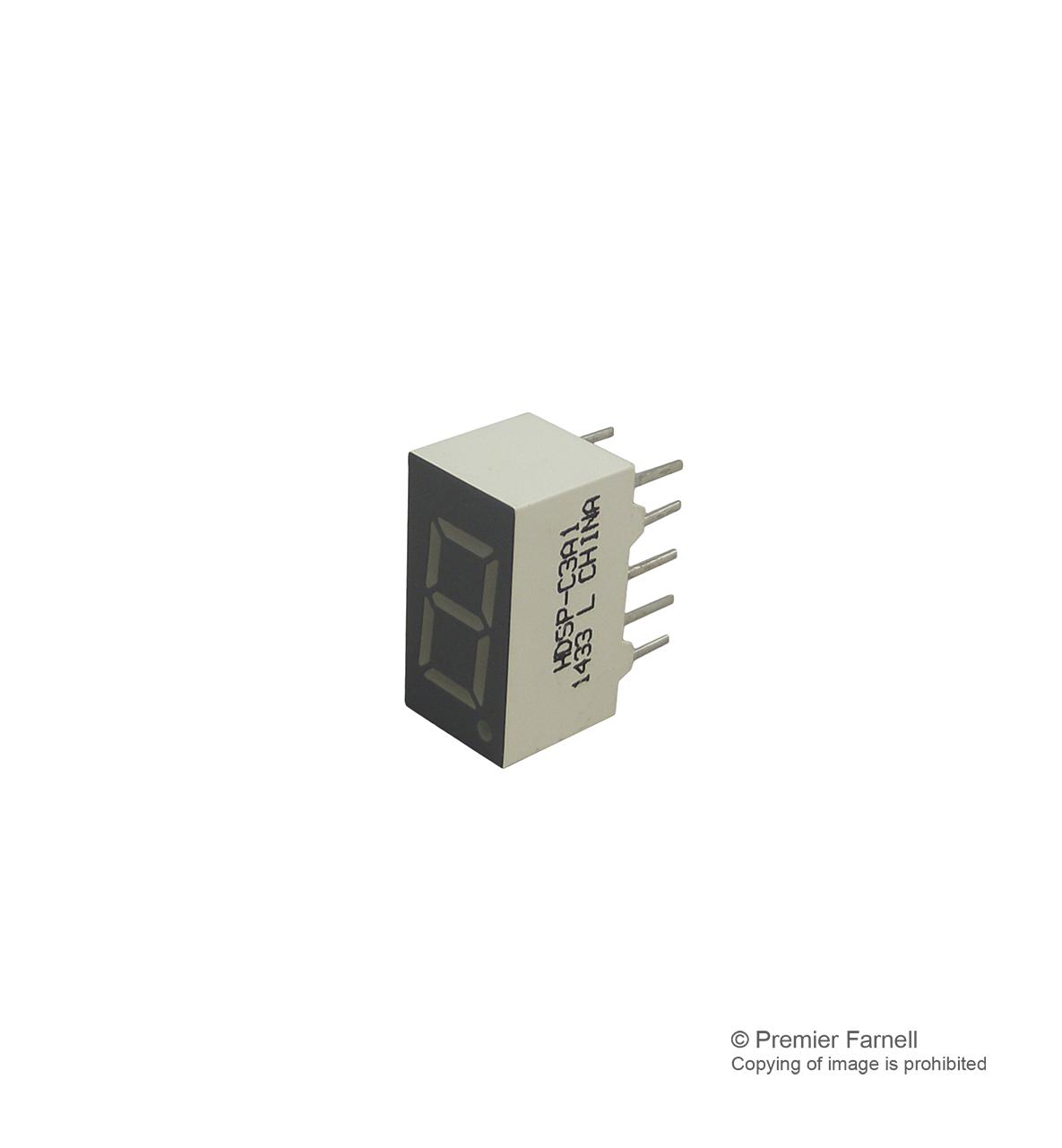

BROADCOM HDSPC3A1 LED Digit Display
The 0.36-inch single digit PCB LED display offers vibrant illumination with GaAsP/GaP Red, Orange, Yellow, Green, and AlGaAs/GaAs Red chips. It features high reliability, excellent character appearance, and RoHS compliance. Available in common anode and cathode options, this display is suitable for electronic projects, industrial controls, and digital readouts. Its compact size and vivid color options make it ideal for space-constrained environments, ensuring clear visibility and consistent performance in various temperatures and lighting conditions.
BROADCOM HDSPC3A1 LED Digit Display Specifications:
- Display height: 0.36 inches
- Package Dimensions: 4.80 mm width, 1.6 mm height
- Power Dissipation: 575-62.5-50 mW depending on color
- Forward Voltage: 2.0-2.5 V (varying by color)
- Peak Wavelength: 640-660 nm depending on color
- Luminous Intensity: 0.75-19 mcd depending on color
- Average Luminous Intensity: 1-19 mcd
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Wave soldering temperature: 260°C for max 5 seconds
- Color Options: Red, Green, Yellow, Orange, AlGaAs Red
- Common Anode and Common Cathode configurations available
- Max Continuous Forward Current: 25 mA
- Peak Forward Current: 80 mA
- Material: GaAsP/GaP, GaAs, AlGaAs chips
- RoHS compliant, halogenated device
Buy the Avago HDSPC3A1 – Reliable LED Display for Industrial Applications
Purchase the LED digit display online today and enhance your electronic projects or industrial systems with high reliability, vivid color options, and easy integration. Perfect for digital readouts, control panels, and space-constrained applications, this display ensures clear visibility and long-term performance. With version options for common anode or cathode setups, it caters to a variety of circuit designs. Get yours now for quick delivery and seamless installation in your next project.
Buy Avago HDSPC3A1 now and experience unmatched brightness and durability for your digital display needs.
Frequently Asked Questions
Where can I buy BROADCOM HDSPC3A1?
You can click on the BUY or RFQ button to purchase HDSPC3A1 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSPC3A1?
You can download the HDSPC3A1 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSPC3A1?
BROADCOM
