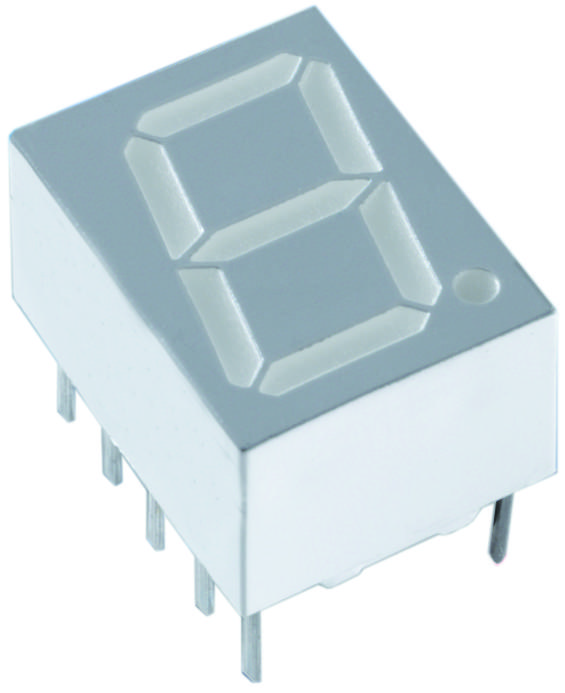

BROADCOM HDSPF203 7-segment display
The HDSP-F203 is a 10mm common cathode right-hand decimal 7-segment display ideal for viewing distances up to 4.5 meters. It features industry-standard packaging, evenly lit segments, mitred corners, and a high-contrast grey package. With a wide ±50° viewing angle and categorized luminous intensity, it ensures uniform brightness in long digit string multiplexing applications. Suitable for industrial, imaging, and video systems, this display offers high light output, handles high peak currents, and provides excellent appearance and design flexibility for various electronic displays.
BROADCOM HDSPF203 7-segment display Specifications:
- Size: 10 mm (0.40 inch)
- Configuration: Common cathode
- Color Options: Red, Orange, Yellow, Green
- Luminous Intensity Category: Categorized for uniform brightness
- Viewing Angle: ±50°
- Maximum Power per Segment: 105 mW
- Peak Forward Current: 902 mA
- DC Forward Current: 20 mA
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Wavesoldering Temperature: 250°C for 3 seconds
Buy the Avago HDSPF203 – Reliable 10mm 7-Segment Display for Industrial Applications
Order the Avago HDSPF203 10mm 7-segment display online today and enhance your electronic systems with high brightness, wide viewing angles, and excellent appearance. Designed for industrial use, it's perfect for applications requiring long viewing distances and clear digit visibility. With categorization for consistent luminous intensity, high peak current handling, and industry-standard packaging, this display ensures reliable performance in video, imaging, and industrial equipment. Purchase now to secure fast delivery and trusted quality for your projects.
Buy Avago HDSPF203 now and experience unmatched reliability and performance in industrial displays and digital engineering solutions.
Frequently Asked Questions
Where can I buy BROADCOM HDSPF203?
You can click on the BUY or RFQ button to purchase HDSPF203 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSPF203?
You can download the HDSPF203 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSPF203?
BROADCOM
