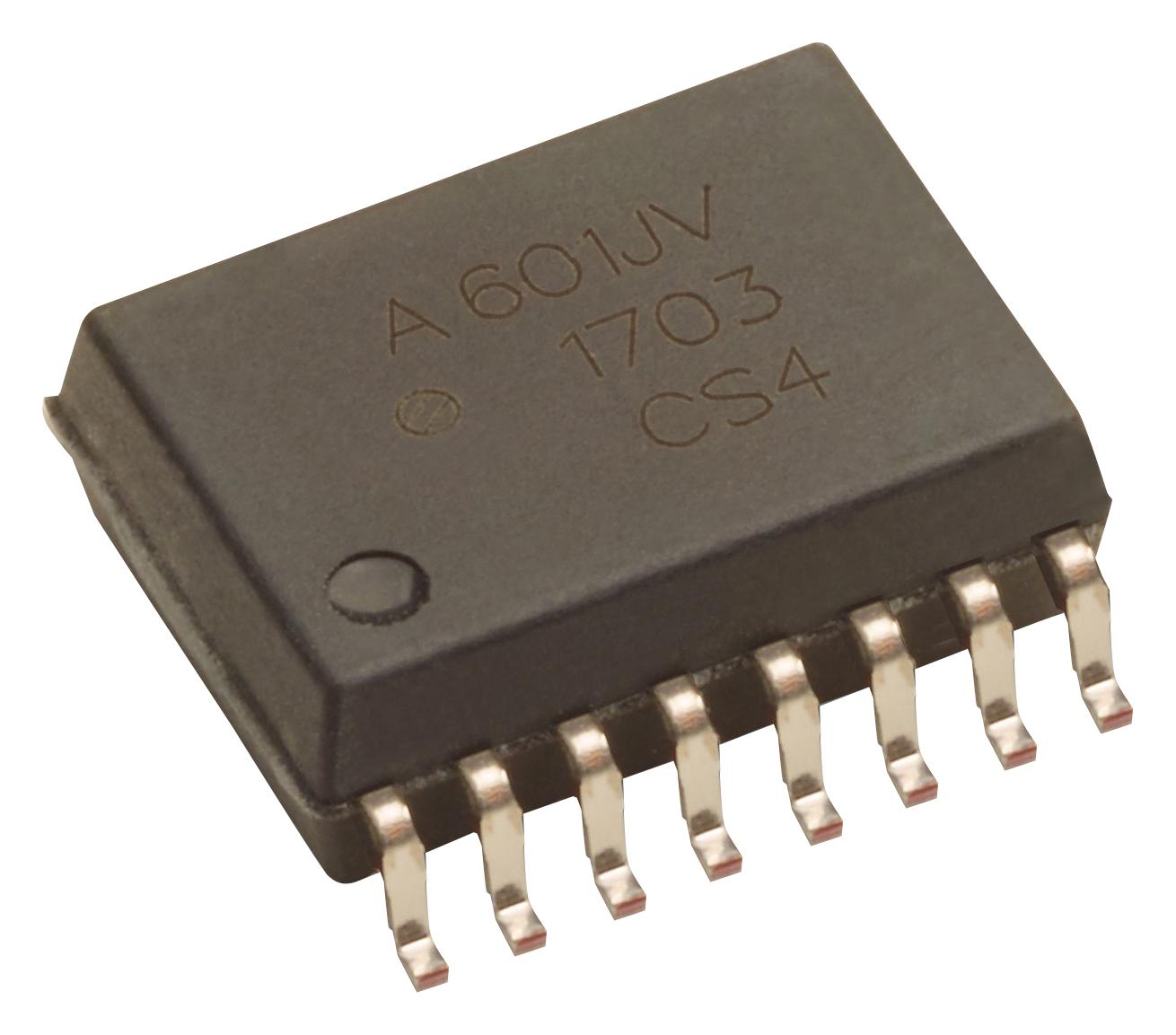

BROADCOM ASSR601JT000E High-Voltage Photo MOSFET
The ASSR-601JV/JT is a compact automotive high-voltage Photo MOSFET with R2Coupler™ insulation, designed for signal switching and isolation in automotive systems. It features optically coupled high-voltage detection, low leakage current, and is qualified to stringent automotive standards. Suitable for battery insulation resistance measurement and BMS sensing, it offers reinforced safety insulation, a breakdown voltage of 1500V, and fast switching times under harsh temperature conditions. The device combines solid-state reliability with high-temperature performance and regulatory approvals.
BROADCOM ASSR601JT000E High-Voltage Photo MOSFET Specifications:
- Package: SO-16, 300 mil
- Isolation Voltage: 1500V at 250 uA, 1700V typical
- Breakdown Voltage: 1500V, maximum
- Temperature Range: -40°C to +105°C for ASSR-601JV, -40°C to +125°C for ASSR-601JT
- Leakage Current: <1 pA at 1000V for ASSR-601JV, <5 pA at 1000V for ASSR-601JT
- On-Resistance: <2500Ω at 10 mA load current
- Turn-on Time: <4 ms, Turn-off Time: <0.5 ms
- Creepage Between input-output: 8 mm, between drain pins: >5 mm
- Max Working Voltage: 1414 Vpeak, UL 5000 Vems for 1 min
- Insulation Resistance: >102 MΩ at 500V
- Input Current: 7–30 mA, V_on: 5V, V_off: 0.4V
- Peak Transient Input Current: 1 A at 100 Hz
- Safety Certifications: IEC/EN/DIN EN 60747-5-5, UL1577, CSA
Buy the Broadcom Series ASSR High-Voltage Photo MOSFET: ASSR-601JT
Purchase the Broadcom ASSR-601JT high-voltage Photo MOSFET online today. Engineered for automotive safety and reliable signal switching, this device offers reinforced insulation, low leakage, and fast response times. Its compact SO-16 package suits tight circuit designs, making it ideal for battery management, insulation resistance tests, and high-temperature industrial applications. With stringent automotive approvals and high breakdown voltage, this Photo MOSFET ensures safety and durability in demanding environments. Order now for quick delivery and integrate industry-leading performance into your automotive or industrial projects.
Get Broadcom ASSR-601JT today—built for precise signal isolation and long-lasting reliability in automotive systems.
Frequently Asked Questions
Where can I buy BROADCOM ASSR601JT000E?
You can click on the BUY or RFQ button to purchase ASSR601JT000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASSR601JT000E?
You can download the ASSR601JT000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASSR601JT000E?
BROADCOM
