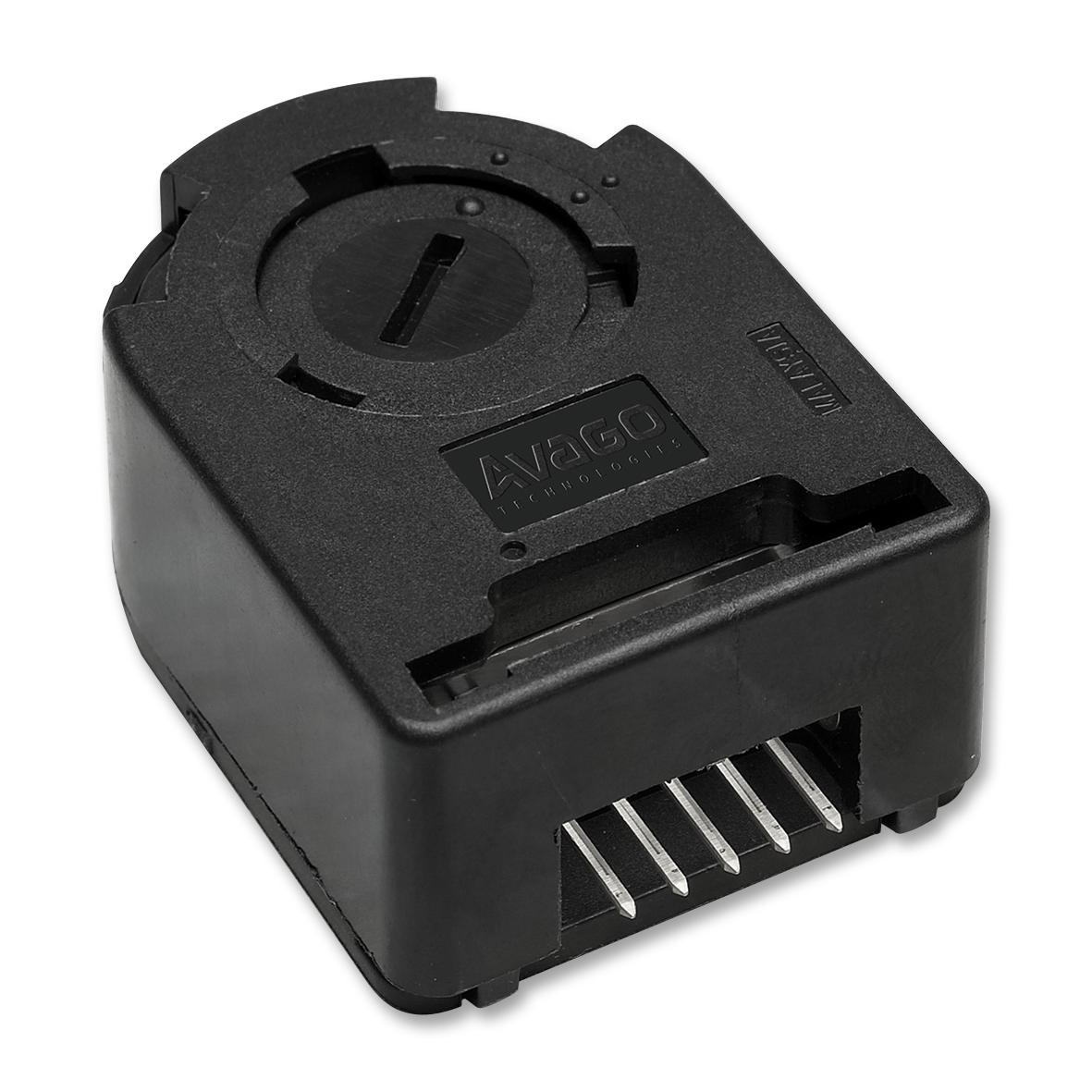

BROADCOM HEDS5540A14 Optical Encoder
The HEDS-5540 optical encoder offers high reliability, resolution up to 1024 CPR, and easy assembly with two channels and optional index pulse. Featuring a lensed LED light source, integrated detector circuit, and metal codewheel, it provides precise motion detection suitable for applications like printers, tape drives, and positioning systems. Operating in temperatures from -40°C to +100°C, it outputs TTL-compatible signals at a single 5V supply, requiring no signal adjustment. External mounting ears facilitate quick installation, making it cost-effective for high-volume industrial use.
BROADCOM HEDS5540A14 Optical Encoder Specifications:
- Resolution: 1024 CPR
- Operating Temperature: -40°C to +100°C
- Supply Voltage: 5 V (single supply)
- Output Type: TTL-compatible
- Number of Channels: 2 (optional 3 with index pulse)
- Output Waveforms: Quadrature with optional index signal
- Connector Pins: 0.025 inch square pins on 0.1 inch centers
- Size: Compact, designed for easy mounting
- Codewheel: Metal with high resolution capacity
- Environmental: Dust protection with silicon rubber cover available
- Voltage Rating: 5 VDC, compatible with TTL logic
- Maximum Shaft Speed: 30,000 RPM
- Dimensions: Refer to datasheet mounting dimensions, typically around 25.7 mm length
- Mechanical: External mounting ears for larger motors and easy installation
Buy the Buy Avago HEDS-5540 Part Number HEDS5540A14 Online
Purchase the Avago HEDS-5540 optical encoder online today to enhance your automation projects. Featuring high resolution up to 1024 CPR, TTL compatibility, and easy mounting, this encoder ensures precise motion sensing in printers, tape drives, and positioning systems. Its robust design withstands temperatures from -40°C to +100°C and provides reliable digital output signals, making it ideal for high-volume applications. Order now and benefit from quick delivery, proven performance, and long-lasting durability for your industrial or robotics needs.
Get Avago HEDS-5540 today—built for high-resolution motion detection and reliable industrial performance.
Frequently Asked Questions
Where can I buy BROADCOM HEDS5540A14?
You can click on the BUY or RFQ button to purchase HEDS5540A14 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HEDS5540A14?
You can download the HEDS5540A14 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HEDS5540A14?
BROADCOM
