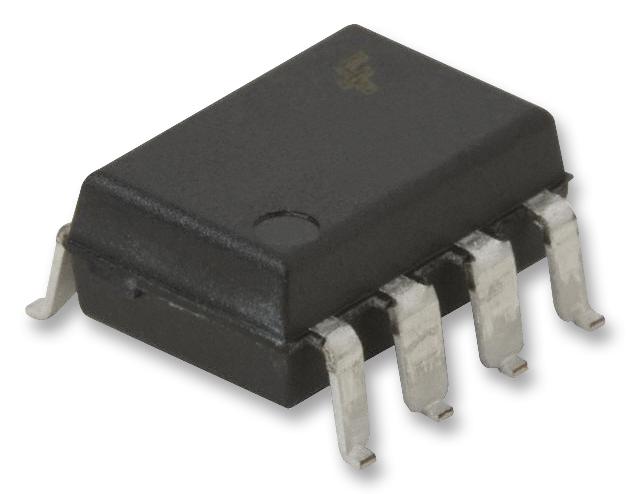

BROADCOM HCPL261N300E High-Speed Optocoupler
The HCPL-261N series consists of high-speed, optocouplers designed for digital isolation and signal transmission in industrial systems. These devices feature HCMOS compatible inputs, high common-mode rejection of 15 kV/μs, and a typical speed of 10 MBd, making them ideal for line receivers, A/D and D/A conversion, and instrumentation isolation. Available in DIP, SOIC-8, and flat packages, they ensure excellent electrical performance, safety compliance, and RoHS conformity, suitable for versatile industrial automation and communication applications.
BROADCOM HCPL261N300E High-Speed Optocoupler Specifications:
- Input Current: 3.0 mA typical
- Input Voltage: -3 to 55 V (enable and input)
- Output Voltage: -0.5 to 7 V
- Output Current: up to 50 mA per channel
- Propagation Delay: 52–100 ns
- Pulse Width Distortion: 11–45 ns
- Common Mode Transient Immunity: 15 kV/μs guaranteed
- Isolation Voltage: 3750 Vrms (UL), 6000 Vrms (IEC/EN/DIN)
- Temperature Range: -40°C to +85°C
- Package Options: DIP, SOIC-8, flat surface-mount
- RoHS compliant and UL recognized
- Lead Solder Temperature: 260°C for 10 seconds
- Output Type: Open collector Schottky clamp transistor
- Input-Output Capacitance: Approx. 0.6 pF
- Leakage Current: < 5 μA at 500 V
Buy the Avago HCPL-261N – Reliable Optocoupler for Industrial Applications
Order the Avago HCPL-261N optocoupler today to ensure high-speed, reliable electrical isolation in industrial automation and data transmission systems. Designed with high common-mode rejection of 15 kV/μs, 10 MBd speed, and RoHS compliance, it offers excellent electrical performance in various packages including DIP and SOIC-8. Suitable for line receivers, instrumentation isolation, and A/D conversion, this device guarantees safety, efficiency, and durability. Purchase online now to benefit from fast delivery, expert support, and competitive prices for your industrial needs.
Buy Avago HCPL-261N now and experience unmatched reliability and performance in industrial signal isolation and communication solutions.
Frequently Asked Questions
Where can I buy BROADCOM HCPL261N300E?
You can click on the BUY or RFQ button to purchase HCPL261N300E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL261N300E?
You can download the HCPL261N300E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL261N300E?
BROADCOM
