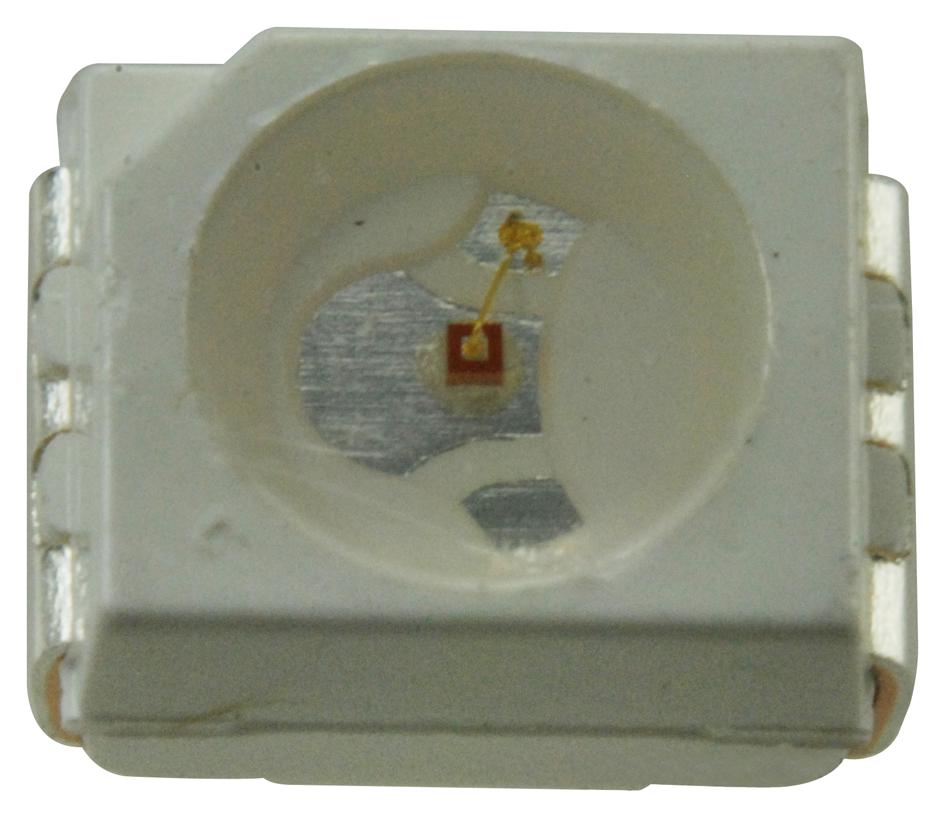

BROADCOM HSMGA100J02J1 Yellow-green SMD LED
The HSMG-A100-J02J1 is a yellow-green surface-mount LED in a PLCC-2 package, offering high brightness and reliability. It features a wide 120° viewing angle, making it ideal for automotive, signage, and backlighting applications. Designed for IR reflow and wave soldering processes, it has a flat top surface for easy light pipe integration and a built-in reflector to boost light output. Suitable for harsh environments like interior automotive lighting, electronic signs, and industrial equipment, this LED provides consistent performance and superior illumination.
BROADCOM HSMGA100J02J1 Yellow-green SMD LED Specifications:
- Package Type: PLCC-2 surface mount
- Color: Yellow-green
- Technology: AllnGaP
- Viewing Angle: 120°
- Luminous Intensity: 480 mcd typical, 520 mcd max
- Wavelength: 565 nm typical, 569 nm dominant
- Forward Voltage: 2.2 V typical, 2.6 V max at 20 mA
- Peak Wavelength: 585 nm
- Junction Temperature: 110°C
- Operating Temperature: -55°C to +100°C
- Storage Temperature: -55°C to +100°C
- Soldering: Compatible with IR reflow and wave soldering
- Luminous efficacy: 0.45 Im/W
- Power Dissipation: 63 mW
- Reverse Voltage: 5 V
- Drive Current: 20 mA
- Dimensions: Approx. 2.8 mm x 3.2 mm
- Reliability Features: suitable for harsh environments, flat top surface for light pipes, built-in reflector
Buy the Buy Broadcom Yellow-green SMD LED Part Number HSMGA100J02J1 Online
Purchase the Broadcom HSMGA100J02J1 yellow-green surface-mount LED online today. Engineered for high reliability, this LED features a 120° viewing angle, flat top surface for easy light pipe mounting, and compatibility with IR reflow and wave soldering processes. Its superior brightness and wide environmental tolerance make it perfect for automotive interior lighting, electronic signs, industrial machinery, and general illumination. Order now to ensure high-performance backlighting and indicator solutions for demanding applications requiring consistent, long-lasting illumination.
Get Broadcom HSMGA100J02J1 today—built for precision and long-lasting durability in automotive and signage applications.
Frequently Asked Questions
Where can I buy BROADCOM HSMGA100J02J1?
You can click on the BUY or RFQ button to purchase HSMGA100J02J1 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMGA100J02J1?
You can download the HSMGA100J02J1 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMGA100J02J1?
BROADCOM
