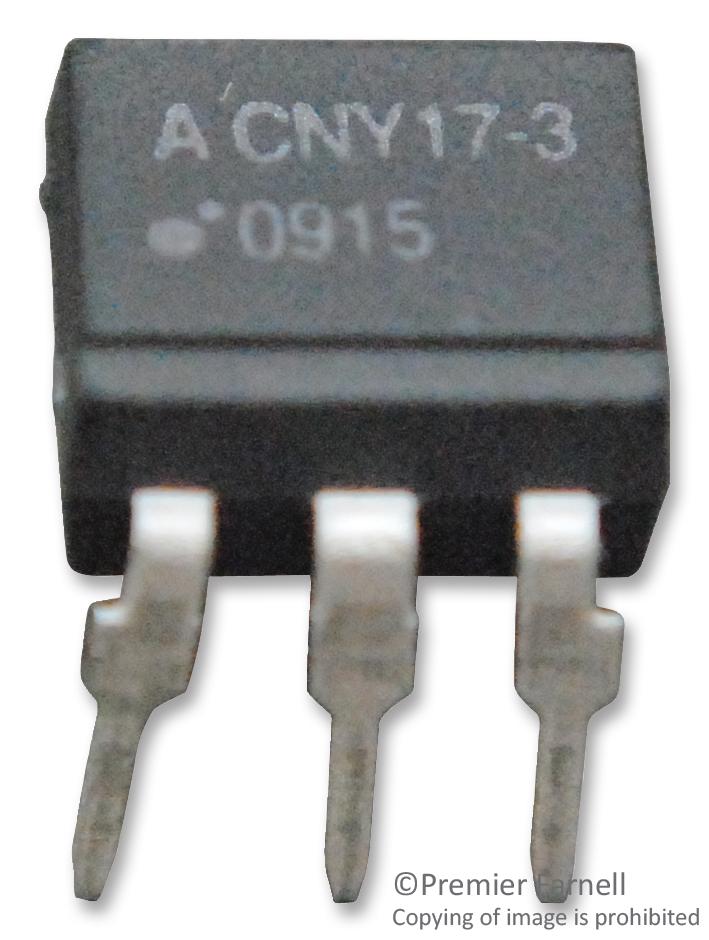

BROADCOM CNY173000E Phototransistor Optocoupler
The CNY17-3-000E is a high-performance 6-pin phototransistor optocoupler featuring an LED coupled to a phototransistor, capable of withstanding collector-emitter voltages above 70V. It offers a response time of approximately 5 microseconds and a minimum current transfer ratio of 40% at 10mA input. Designed for reliable signal transmission, it provides high input-output isolation voltage of 5000 VRMS, making it ideal for circuit isolation in measurements, control systems, and power applications. With a maximum forward current of 60mA and a total dissipation of 250mW, it ensures efficient and safe operation in diverse electronic environments. Suitable for high-voltage digital and analog signal isolation, the device meets industry standards for durability and performance.
BROADCOM CNY173000E Phototransistor Optocoupler Specifications:
- Collector-emitter voltage: above 70 V
- Response time: approximately 5 μs
- Current Transfer Ratio (CTR): minimum 40% at input current of 10 mA
- Isolation voltage: 5000 VRMS
- Maximum forward current: 60 mA
- Total power dissipation: 250 mW
- Storage temperature: -55°C to +150°C
- Operating temperature: -55°C to +100°C
- Lead solder temperature: 260°C for 10 seconds
- Device package: 6-pin DIP
Buy the Buy Avago Technologies CNY17-3-000E Part Number CNY173000E Online
Enhance your electronic systems with the Avago CNY17-3-000E phototransistor optocoupler, offering fast response, high isolation voltage, and reliable performance for signal transmission, control circuits, and measurement equipment. This 6-pin DIP package ensures easy integration, and its ability to handle voltages above 70V makes it suitable for industrial and power electronics. With industry-approved safety and RoHS compliance, ordering online guarantees fast delivery and consistent quality for your projects or maintenance needs. Invest in proven optocouplers to ensure stable, efficient circuit operation today.
Buy Avago Technologies CNY17-3-000E now and experience unmatched reliability and performance in high-voltage circuit isolation.
Frequently Asked Questions
Where can I buy BROADCOM CNY173000E?
You can click on the BUY or RFQ button to purchase CNY173000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part CNY173000E?
You can download the CNY173000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of CNY173000E?
BROADCOM
