BROADCOM HFBR1402Z Fiber Optic Transmitter
The HFBR-1402Z is a high-performance, cost-effective 5 MBd fiber optic transmitter utilizing 820 nm AlGaAs technology. Designed for industrial and data communication applications, it supports multiple fiber sizes including 50/125, 62.5/125, 100/140, and 200 µm, with industry-standard SMA connectors for flexible deployment. It offers efficient optical coupling, operates reliably within a wide temperature range of -40°C to +85°C, and complies with IEEE 802.3 Ethernet and Token Ring standards. Its compact, pick-and-place, wave solderable package eliminates the need for additional hardware, making it ideal for high-volume systems requiring robust and precise fiber optic links over several kilometers.
BROADCOM HFBR1402Z Fiber Optic Transmitter Specifications:
- Wavelength: 820 nm
- Data Rate: 5 MBd
- Input Voltage: Up to 6.0 V
- Output Power: Typical -13.8 dBm to -15.8 dBm into fiber
- Optical Power Budget: 4.2 to 15 dB depending on fiber size
- Spectral Response: Peak at 820 nm
- Response Time: Rise/Fall Time 3.3 to 6.3 ns
- Operating Temperature: -40°C to +85°C
- Connector: SMA port with industry-standard mounting
- Mechanical Dimensions: mm-based, compatible with standard panel mounting
- Compliance: IEEE 802.3, ANSI standards
- Environmental: RoHS compliant, suitable for industrial environments
- Power Consumption: Typically 35-63 mA at 5 V
- Port Housing: Plastic, pick-and-place, wave solderable
- Port Options: Standard SMA, optional threaded or metal ports

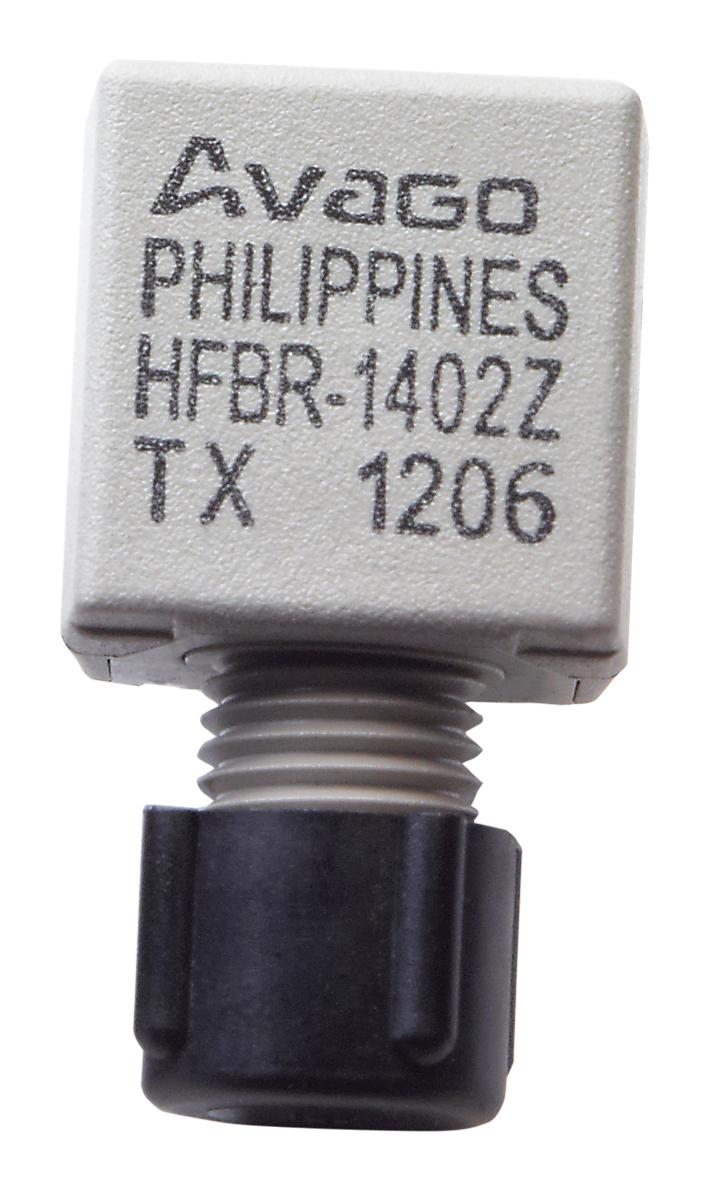

Buy the Buy Avago Technologies HFBR-1402Z Part Number HFBR1402Z Online
Order the Avago HFBR-1402Z fiber optic transmitter today to ensure high-quality, cost-effective data transmission over kilometers. Its industry-standard SMA port, wide operating temperature from -40°C to +85°C, and compatibility with multiple fiber sizes make it ideal for industrial, networking, and data communication applications. This pick-and-place, wave solderable device guarantees consistent optical performance with typical power output of -13.8 dBm to -15.8 dBm, supporting applications requiring robustness and precision in demanding environments.
Get Avago Technologies HFBR-1402Z today—designed for high-speed, reliable fiber optic links in industrial and communication systems.
Frequently Asked Questions
Where can I buy BROADCOM HFBR1402Z?
You can click on the BUY or RFQ button to purchase HFBR1402Z from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR1402Z?
You can download the HFBR1402Z datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR1402Z?
BROADCOM
