BROADCOM HFBR1521ETZ Fiber Optic Transceiver
The HFBR-1521ETZ series comprises high-performance fiber optic transceivers designed for industrial data communication, automation, and control networks. Featuring a 660 nm LED transmitter and a monolithic digital receiver with Schottky output, these components offer high noise immunity and extended temperature operation from -40°C to +85°C. They are RoHS compliant, easy to interface with TTL circuits, and suitable for applications requiring reliable, low-cost optical data transfer over distances up to 43 meters at 1MBd. The modules support vertical and horizontal mounting, stackable configurations, and are ideal for industrial drives, renewable energy systems, and EMC-sensitive environments.
BROADCOM HFBR1521ETZ Fiber Optic Transceiver Specifications:
- Wavelength: 660 nm
- Output Power: -16.8 to 80 dBm
- Input Optical Power: -216 to -8.7 dBm
- Receiver Sensitivity: -216 to -8.7 dBm
- Optical Fiber Diameter: 1 mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Supply Voltage: 4.75 V to 5.25 V
- Forward Voltage: 1.37 to 2.05 V
- Rise and Fall Time: 20 ns
- Propagation Delay: 50-140 ns
- Link Distance: Up to 43 meters at 1MBd
- RoHS compliant and flame retardant VALOX housing
- Package options: horizontal, vertical, and tilted
- Soldering temperature: 260°C for 10 sec
- Moisture sensitivity level: MSL-3

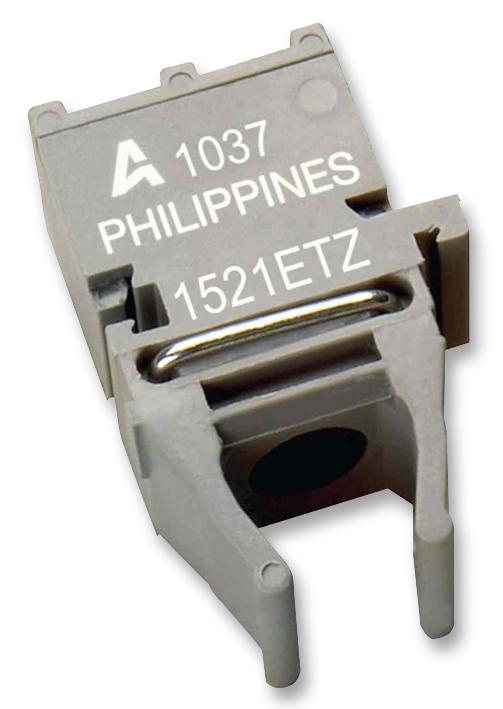

Buy the Broadcom Series Versatile Link: HFBR1521ETZ
Secure your industrial data connections with the Broadcom HFBR1521ETZ transceiver. Designed for reliable performance from -40°C to +85°C, it offers distances up to 43 meters at 1MBd, supporting noise immunity and easy mounting options. Perfect for automation, renewable energy, and EMC-sensitive systems, this low-cost, RoHS-compliant module ensures error-free data transmission in tough environments. Order online now for fast delivery and upgrade your network with high-quality, long-range optical communication components.
Order your Broadcom Series HFBR1521ETZ fiber optic transceiver today and enhance your industrial communication network with reliable, extended-distance data transfer solutions.
