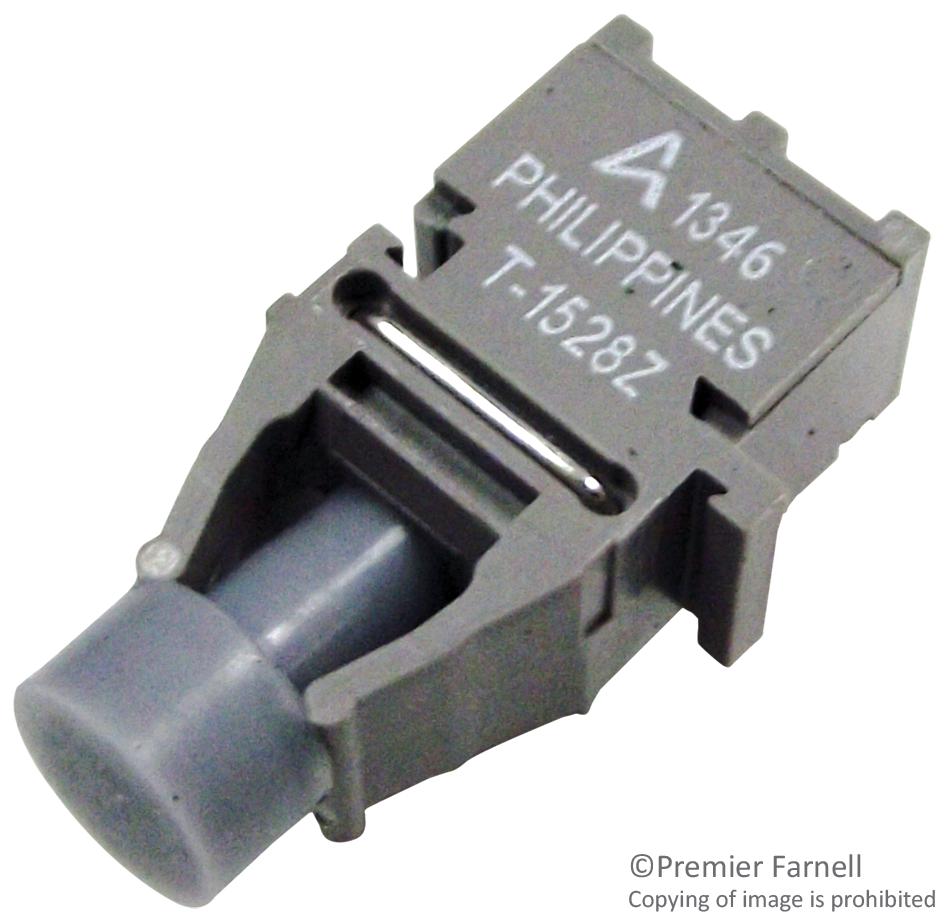

BROADCOM HFBR1524Z Fiber Optic Transmitter
The HFBR-1524Z is a 1 Mbaud fiber optic transmitter designed for reliable data communication. Featuring a 660 nm LED and optimized for use with 1 mm plastic optical fiber, it offers voltage isolation, EMI/RFI immunity, and enhanced security. The device is compatible with standard TTL circuitry, provides a peak supply current of only 6mA, and incorporates an interlocking feature for mechanical stability. Flame-retardant, suitable for automotive systems, and operates between 0 and 70°C. Its simplified optical calculations and high noise immunity make it ideal for industrial, networking, and automation applications.
BROADCOM HFBR1524Z Fiber Optic Transmitter Specifications:
- Wavelength: 660 nm
- Peak Emission Wavelength Tolerance: ±10 nm
- Optical Output Power: -4.5 dBm at 60mA
- Forward Voltage: 1.45 V at 60mA
- Drive Current: Recommended range 10-750 mA
- Maximum Forward Current: 1000 mA
- Operating Temperature Range: 0°C to 70°C
- Storage Temperature: -40°C to +85°C
- Mechanical Dimensions: Standard pinout, stackable design, flame-retardant VALOX housing
- Connector Compatibility: Simplex, duplex, latching connectors
- Soldering Temperature: 260°C for 10 seconds
- Soldering Cycle Temp: 260°C
- Food-grade materials, RoHS-compliant
Buy the AVAGO Series Versatile Link Fiber Optic Transmitter: HFBR1524Z
Purchase the AVAGO Series HFBR1524Z fiber optic transmitter online today for fast delivery! This robust, 1 Mbaud device ensures secure, EMI/RFI immune data transfer, perfect for automation, industrial controls, automotive systems, and high-reliability communication networks. Featuring a 660 nm LED, optimized for 1 mm plastic fiber, and compliant with RoHS standards, it operates reliably from 0 to 70°C with low power consumption of just 6mA peak. Secure your systems with this flame-retardant, TTL-compatible transmitter for precise and noise-immune data communication.
Order your AVAGO Series Versatile Link HFBR1524Z fiber optic transmitter today and ensure reliable, high immunity data transmission for industrial, automotive, and networking projects.
Frequently Asked Questions
Where can I buy BROADCOM HFBR1524Z?
You can click on the BUY or RFQ button to purchase HFBR1524Z from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR1524Z?
You can download the HFBR1524Z datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR1524Z?
BROADCOM
