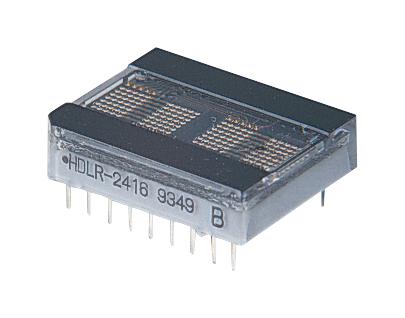

BROADCOM HDLG2416 Alphanumeric Display Module
The HDLG-2416 Series displays are four-character, 5.0 mm (0.2 inch) high alphanumeric modules with a 5x7 dot matrix. Driven by CMOS ICs, they support ASCII decoding, built-in RAM, and dimming control, making them ideal for industrial and electronic projects requiring clear, sunlight viewable displays. They are low power, categorically color-coded in yellow, green, red, orange, and deep red, and feature wide operating temperature ranges from -40°C to +85°C. The modules are mechanically sealed for durability and easy integration with microprocessors and control systems for versatile applications.
BROADCOM HDLG2416 Alphanumeric Display Module Specifications:
- Display Size: 5.0 mm (0.2 inch) high alphanumeric characters
- Character Matrix: 5 x 7 dots
- Supply Voltage: Vpp to Ground -0.5V to 7.0V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to 100°C
- Maximum Junction Temperature (IC): +150°C
- Humidity: 85% at 65°C (non-condensing)
- Soldering Temperature: 260°C for 5 seconds (Dipping), 250°C for 3 seconds (Wave)
- ESD Protection: 2 kV per pin
- Color Categories: Yellow, Green, Deep Red, Orange, Red
- Viewing Angle: Approximately 50°
- Power Consumption: 20–180 mA depending on brightness and color
- Pin Configuration: 18-pin DIP package with connections for power, data, control, and blanking
- Includes internal ASCII decoder, RAM, and brightness control
- Compatible with microprocessors via direct address and data bus connections
