BROADCOM HLMP2785 LED Bar Graph Array
The HLMP-2785 is a rectangular yellow LED bar graph array designed for applications requiring a bright, large, and uniform light source. It features diffused P-N junctions integrated into a GaAsP epitaxial layer on a GaP substrate, providing excellent ON-OFF contrast and consistent illumination. The LED array is stackable in X-Y directions, flush mountable, and compatible with panel and legend mounts, making it versatile for various display and indicator uses. The light-emitting surface is suitable for attaching legends, and the device is ideal for use in computers, consumer electronics, automation, communication, and industrial applications.
BROADCOM HLMP2785 LED Bar Graph Array Specifications:
- Type: Rectangular LED bar graph array
- Color: Yellow
- Emission Wavelength: 583 nm (peak), 585 nm (dominant)
- Lighting Emitting Areas: 4 x 0.8 in (10.16 x 20.32 mm)
- Number of Emitting Areas: 8
- Electrical Power Dissipation per LED: 135 mW
- Peak Forward Current: 90 mA
- Average Forward Current: 25 mA
- DC Forward Current: 30 mA
- Reverse Voltage: 15 V
- Operating Temperature Range: 40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Wave Soldering Temperature: 250°C for 3 seconds
- Thermal Resistance (Junction-to-Pin): 150°C/W
- Dimensions: Approximate length 10.16 mm, width 20.32 mm
- Mounting: Flush, panel, and legend mount compatible
- Package: LED array with diffused optical surface

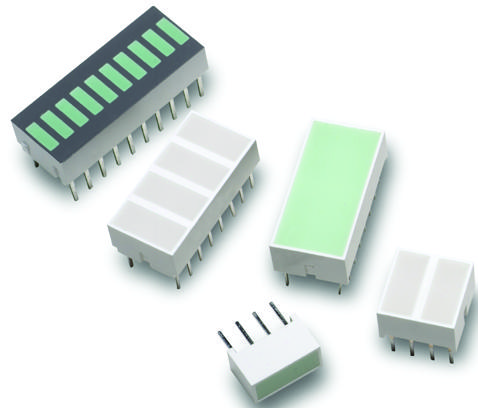

Buy the Buy Avago Technologies HLMP-2785 Yellow LED Bar Graph Array Part Number HLMP2785 Online
Order the Avago HLMP-2785 yellow LED bar graph array online today. This bright, uniform LED indicator module is perfect for displays, automation systems, and industrial applications. Its diffused surface provides excellent ON-OFF contrast, and the stackable, flush-mount design makes installation flexible. Suitable for computer, consumer electronics, and communication equipment, this efficient device offers reliable performance with measures for thermal management, ensuring long-lasting durability. Purchase now for fast delivery and enhance your electronic projects with high-quality visual indicators.
Get Avago Technologies HLMP-2785 yellow LED bar graph array today—designed for bright, uniform illumination and versatile mounting options for indicator use.
Frequently Asked Questions
Where can I buy BROADCOM HLMP2785?
You can click on the BUY or RFQ button to purchase HLMP2785 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP2785?
You can download the HLMP2785 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP2785?
BROADCOM
