BROADCOM HFBR57E5APZ Fiber-Optic Transceiver
The HFBR-57E5APZ is a high-performance multimode small form-factor pluggable transceiver designed for Fast Ethernet, ATM, FDDI, and SONET OC-3/SDH applications. Featuring an LC connector and digital diagnostics via SFF-8472 compatibility, it provides real-time monitoring of temperature, optical power, LED bias current, and loss of signal. Its robust metal housing ensures compliance with RoHS and EMI standards, supports hot-plugging, and operates within -40°C to 85°C. This module is ideal for network infrastructure and factory automation requiring reliable fiber-optic data transmission.
BROADCOM HFBR57E5APZ Fiber-Optic Transceiver Specifications:
- Form Factor: Small Form-Factor Pluggable (SFP)
- Connector: LC duplex optical interface
- Fiber Type: Multimode fiber 50/125 um and 62.5/125 um
- Wavelength: 1310 nm ±20 nm
- Optical Power: -20.0 to -14.0 dBm (average output power)
- Spectral Width: 147 nm (full width at half maximum)
- Data Rate: 125 MBd (Fast Ethernet), 155.52 MBd (OC-3)
- Temperature Range: -40°C to 85°C
- Supply Voltage: 3.3 V ±10%
- Electrical Power Dissipation: 200 to 500 mW
- Diagnostic Interface: SFF-8472, real-time monitoring of temperature, voltages, optical power, bias current, LOS status
- Compliance: RoHS, EMI standards (EN55022 Class B), UL-94V-0 flame retardant housing
- ESD Immunity: withstands ±25 kV (contact), ±25 kV (air) per industry standards
- Hot-pluggable: Yes, compatible with MSA standards

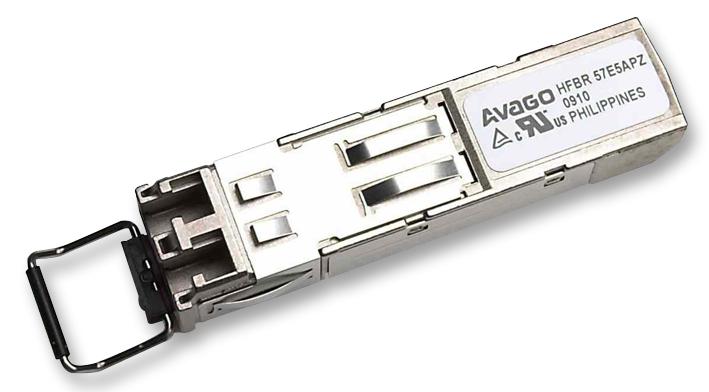

Buy the Avago Series HFBR-57E5APZ Fiber-Optic Transceiver: HFBR-57E5APZ
Order the Avago HFBR-57E5APZ fiber-optic transceiver today and enhance your fiber network with proven reliability, real-time diagnostics, and easy hot-plugging for various high-speed data applications. Designed for multimode fiber, it features advanced digital monitoring for temperature, optical power, and signal integrity, ensuring optimal performance in industrial and telecommunications environments. With RoHS compliance, robust metal housing, and MSA standard compatibility, this module is ideal for seamless network upgrades and factory automation systems. Purchase now for fast, secure fiber connectivity.
Buy Avago HFBR-57E5APZ transceiver now and enjoy reliable, high-speed multimode fiber communication for your network needs.
Frequently Asked Questions
Where can I buy BROADCOM HFBR57E5APZ?
You can click on the BUY or RFQ button to purchase HFBR57E5APZ from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR57E5APZ?
You can download the HFBR57E5APZ datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR57E5APZ?
BROADCOM
