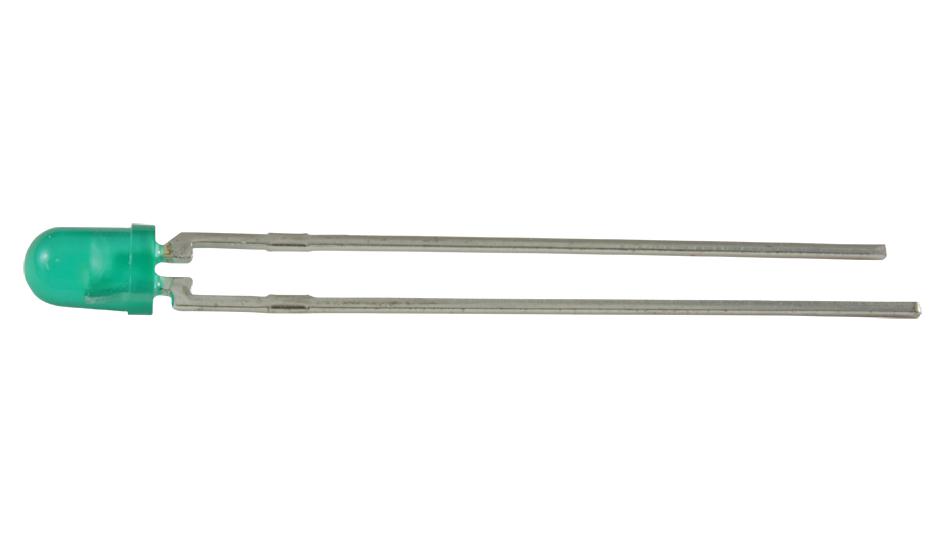

BROADCOM HLMP1503 Green Diffused LED
The HLMP-1503 is a through-hole, diffused green LED lamp with a T-1 (3mm) round lens shape. It features high intensity and a wide viewing angle of 60°, making it suitable for general-purpose indicator applications. The LED has a forward voltage of 2.1V, a forward current of 10mA, and emits light at a wavelength of 569nm with a luminous intensity of 1.0mcd at 10mA. Its design ensures reliability and ruggedness, ideal for LED lighting, portable devices, and industrial applications. Diffusants, tints, and optical design enhancements provide superior light output and viewing angles.
BROADCOM HLMP1503 Green Diffused LED Specifications:
- Lens Shape: T-1 (3mm) round
- Color: Green
- Wavelength: 569nm
- Luminous Intensity: 1.0mcd at 10mA
- Forward Voltage: 2.1V
- Forward Current: 10mA
- Viewing Angle: 60°
- Dominant Wavelength: 560nm
- Peak Wavelength: 558nm
- Peak Forward Current: 90mA
- Peak Forward Voltage: 2.1V
- Operation Temperature Range: -20 to +100°C
- Storage Temperature Range: -40 to +100°C
- Junction Temperature: 110°C
- Device Ratings ensure reliability and ruggedness for industrial use
Buy the Buy Avago HLMP1503 Green Diffused LED Lamp Part Number HLMP1503 Online
Order the Avago HLMP1503 green diffused LED online today for high-quality, reliable illumination in industrial and electronic devices. This 3mm round LED offers a wide 60° viewing angle, ensuring maximum visibility. Its rugged design guarantees durability in various environments, making it perfect for indicator lights, portable gadgets, and industrial lighting. Easy to install with through-hole leads, it provides consistent performance, low power consumption, and excellent light output at 10mA. Purchase online to enjoy fast shipping and competitive prices on this essential LED component.
Buy Avago HLMP1503 green LED lamp now and experience reliable, high-intensity illumination suitable for industrial, portable, or indicator applications.
Frequently Asked Questions
Where can I buy BROADCOM HLMP1503?
You can click on the BUY or RFQ button to purchase HLMP1503 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP1503?
You can download the HLMP1503 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP1503?
BROADCOM
