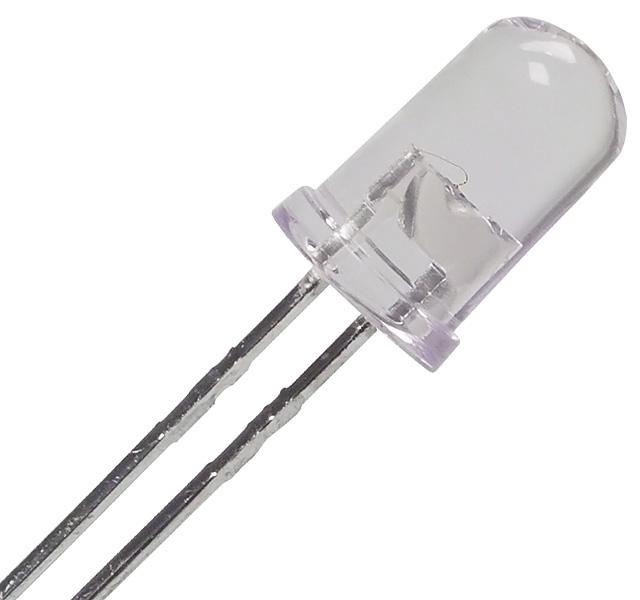

BROADCOM HLMPEL1AZ1KDD High Brightness Amber LED
The HLMP-EL1A-Z1KDD is a 5mm extra high brightness amber LED lamp with an untinted lens, utilizing AlInGaP technology. It offers superior luminous output and excellent readability in sunlight, ensuring high reliability in outdoor and signaling applications. The LED features second-generation optics in a T-1-3/4 package, creating well-defined spatial radiation patterns at specific viewing angles of 15°, 23°, or 30°. Encased in advanced optical epoxy with UV inhibitors, it withstands high temperatures up to +130°C and moisture, making it ideal for outdoor traffic signals, signage, and auto-insertion mounting, with enhanced durability and performance.
BROADCOM HLMPEL1AZ1KDD High Brightness Amber LED Specifications:
- Wavelength: 590nm Amber
- Viewing angles: 15°, 23°, 30°
- Maximum junction temperature: +130°C
- Operating temperature range: -40°C to +100°C
- Power dissipation: 120 mW
- Forward Voltage: 18-21V
- Luminous flux: 2100-2300 lumens at 20mA
- Encased in optical-grade epoxy with UV inhibitors
- Package: T-1-3/4 (5mm)
- Lead material: Tin-plated mild steel
- Reverse voltage: 5V
- Peak wavelength: 594 nm
- Dominant wavelength: 590 nm
- Peak spectral distribution: 594 nm
- Thermal resistance: 240°C/W junction to lead
- RoHS 6 compliant, lead-free
Buy the Buy Avago HLMP-EL1A-Z1KDD Part Number HLMP-EL1A-Z1KDD Online
Purchase the Avago HLMP-EL1A-Z1KDD 5mm extra high brightness amber LED online now. Designed with advanced AllnGaP technology, it provides superior light output, making it ideal for outdoor traffic signals, signs, and auto-insertion mounting. Its UV-resistant epoxy ensures durability against harsh sunlight and moisture, while the well-defined radiation patterns optimize visibility. With a maximum junction temperature of +130°C, seamless operation in bright sunlight is guaranteed. Get reliable, energy-efficient illumination for your outdoor signaling and industrial applications today.
Order your Avago HLMP-EL1A-Z1KDD LED today and enhance your outdoor signaling projects with high brightness and long-lasting durability.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEL1AZ1KDD?
You can click on the BUY or RFQ button to purchase HLMPEL1AZ1KDD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEL1AZ1KDD?
You can download the HLMPEL1AZ1KDD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEL1AZ1KDD?
BROADCOM
