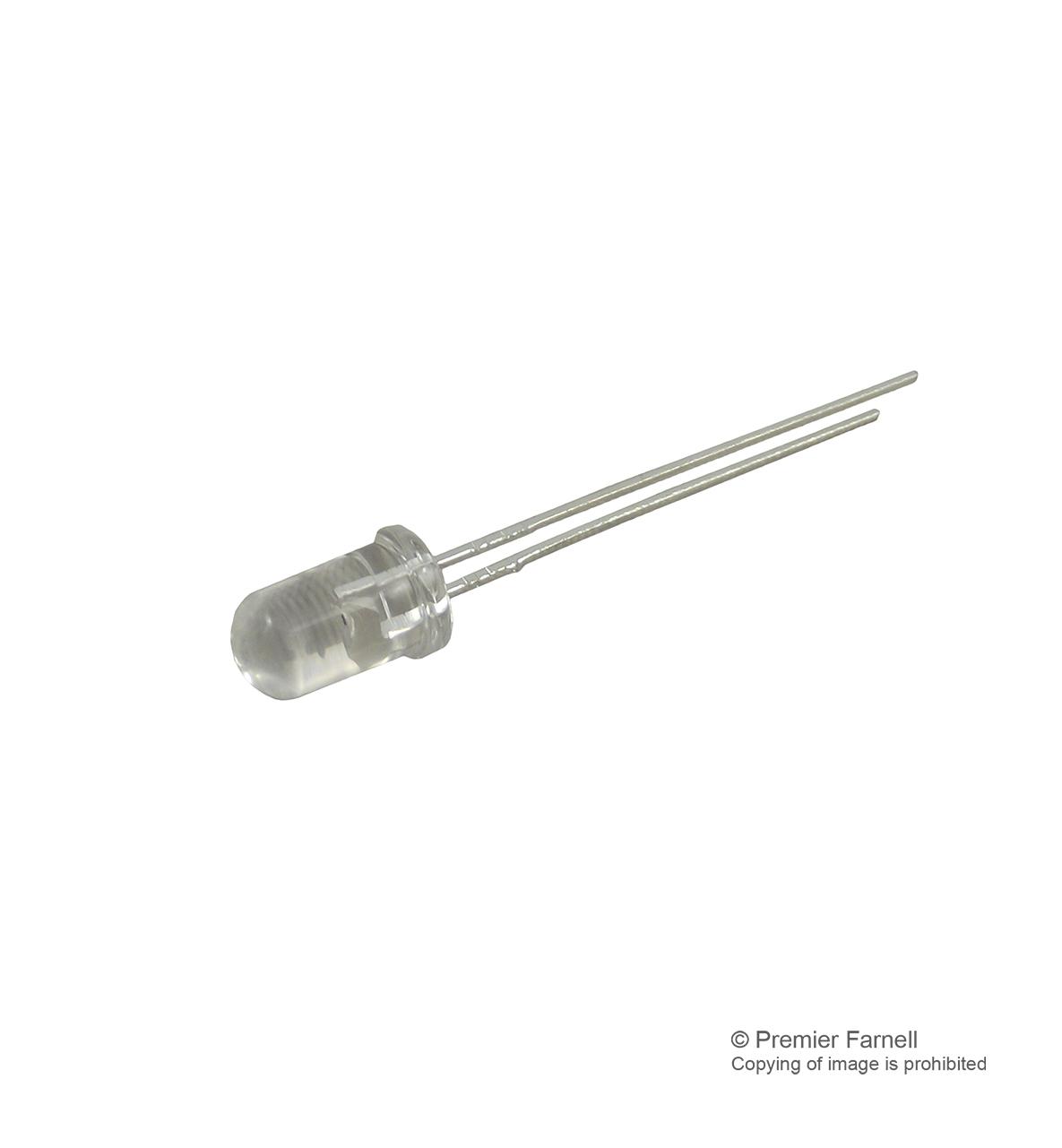

BROADCOM HLMPEG30QT000 High-Brightness LED Lamp
These high-brightness LED lamps utilize AllnGaP technology, offering superior outdoor performance with well-defined spatial radiation patterns at various viewing angles. Designed for traffic signals, pedestrian lights, and outdoor advertising, they feature high luminous output, stable light output over long periods, and high temperature tolerance up to +130°C. The lamps are RoHS compliant, have UV-inhibited epoxy packaging, and provide excellent moisture resistance. Available in multiple colors and viewing angles, they ensure reliable operation in harsh outdoor environments, making them ideal for traffic management, automotive, and signage applications.
BROADCOM HLMPEG30QT000 High-Brightness LED Lamp Specifications:
- Color: Amber 590 nm, Orange 605 nm, Red-Orange 615 nm, Red 626 nm
- Viewing angles: 8°, 15°, 23°, 30°
- Maximum junction temperature: +130°C
- Operating temperature range: -40°C to +100°C
- Peak forward current: 100 mA (pulsed), 50 mA (DC)
- Average forward current: 30 mA
- Forward voltage: Amber 2.02 V, Orange 1.98 V, Red-Orange 1.94 V, Red 1.90 V
- Luminous intensity: Min 880 mcd, Max 27,000 mcd depending on color and configuration
- Size: 5 mm round package with optional lead stand-offs
- Epoxy: Optical grade, UV-inhibited, moisture resistant
- RoHS compliant, lead-free, suitable for outdoor signal and sign applications
Buy the Buy AllnGaP LED Lamps Part Number HLMPEG30QT000 Online
Order the high-brightness AllnGaP LED lamp HLMPEG30QT000 online today to benefit from superior outdoor light performance. Designed for traffic signals, signage, and automotive use, this LED offers high luminous output, robust epoxy packaging, and excellent temperature tolerance up to +130°C. Its well-defined optical patterns and multiple viewing angles ensure optimal visibility in sunlight and harsh outdoor conditions. Purchase now to secure a reliable, RoHS-compliant LED solution that enhances safety and visibility in outdoor environments with ease and confidence.
Buy AllnGaP LED lamps Part Number HLMPEG30QT000 now and ensure reliable high-brightness outdoor signaling with stable performance and excellent moisture resistance.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEG30QT000?
You can click on the BUY or RFQ button to purchase HLMPEG30QT000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEG30QT000?
You can download the HLMPEG30QT000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEG30QT000?
BROADCOM
