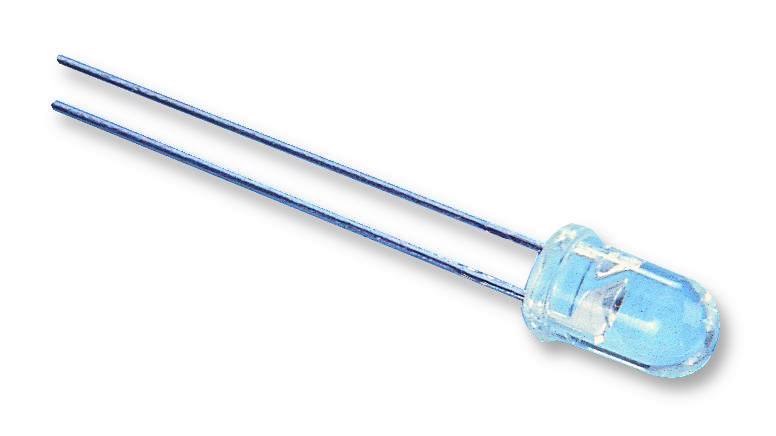

BROADCOM HLMPC523 Ultra-bright LED lamp
The product is a high-performance, ultra-bright LED lamp designed for backlighting, signage, and indicator applications. Featuring high intensity, uniform radiation, and tight meniscus control, these lamps are compatible with automated insertion equipment. Available in multiple colors including red, yellow, orange, green, and emerald green, with viewing angles of 15° and 25°. Suitable for indoor and outdoor use, these durable LEDs offer excellent brightness and consistency, ideal for lighting switches, panels, and signage with various packaging options for easy handling and installation.
BROADCOM HLMPC523 Ultra-bright LED lamp Specifications:
- Color Options: AlGaAs Red, High Efficiency Red, Yellow, Orange, Green, Emerald Green
- Viewing Angles: 15° and 25°
- Package Options: T-1 3/4 (5 mm)
- Maximum DC Forward Current: 30 mA
- Transient Forward Current: 500 mA (10 sec pulse)
- Reverse Voltage: 5 V
- Junction Temperature: 110°C
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Forward Voltage: Typical 1.9V - 2.2V depending on color, Max 2.6V
- Luminous Intensity: Up to 17,000 mcd depending on model and color
- Wavelength: 583 nm to 645 nm depending on color
- Electrical features include typical capacitance of 5-30 pF, reverse breakdown above 5 V
- Dimensions: Diameter approximately 5 mm, height around 8.7 mm
Buy the Avago Series Super Ultra-Bright LED Lamps: HLMP-C523
Discover the high-intensity, ultra-bright LED lamp from Avago. Perfect for signage, indicators, and backlighting, this LED offers exceptional uniformity, reliability, and multiple color options including red, yellow, orange, and green. Designed for indoor and outdoor applications, it features a compact package size with easy installation, tight meniscus control, and compatibility with automated equipment. Ideal for lighting switches and panels, it provides excellent performance, longevity, and brightness ensuring your projects are highly visible and energy-efficient.
Get Avago HLMP-C523 today—built for exceptional brightness, durability, and efficient signage solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMPC523?
You can click on the BUY or RFQ button to purchase HLMPC523 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPC523?
You can download the HLMPC523 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPC523?
BROADCOM
