BROADCOM HLMPY801JPP00 LED Indicator Lamp
The HLMP-Y801-JPPxx is a green LED lamp with high luminous intensity and wide viewing angles, ideal for indicators and backlighting. It features a balanced optical design for superior light output with low power consumption, high efficiency, and versatile mounting options suitable for PCB or panel integration. The LED operates at a maximum forward current of 20 mA, with a peak wavelength of 575 nm. It is RoHS compliant, robust, and available in various packaging styles for flexible deployment in status indication, backlighting, and front panel illumination applications.
BROADCOM HLMPY801JPP00 LED Indicator Lamp Specifications:
- Color: Green
- Part Number: HLMP-Y801-JPPxx
- Package Options: Bulk, Tape & Reel, Ammo Pack
- Luminous Intensity: Min. 240 mcd, Typ. 310 mcd, Max. 1150 mcd at 20 mA
- Viewing Angle: 30°
- Peak Wavelength: 575 nm
- Dominant Wavelength: 564.5–572.0 nm
- Spectrum Half Width: 11 nm
- Forward Voltage: 2.4 V at 20 mA
- DC Forward Current: 20 mA
- Peak Forward Current: 60 mA (4/40 duty cycle, 0.1 ms pulse)
- Reverse Voltage: 5 V
- Junction Temperature: 110°C
- Power Dissipation: 48 mW
- Storage & Operating Temp: -40°C to +100°C
- Solder Temp: 260°C for 5 sec

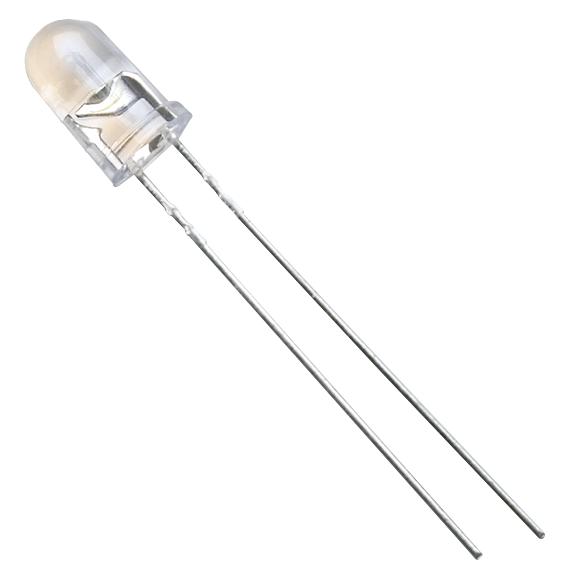

Buy the Buy Avago HLMP-Y801-JPPxx Part Number HLMP-Y801-JPPxx Online
Purchase the Avago HLMP-Y801-JPPxx LED indicator lamp online today for high luminous brightness, wide viewing angles, low power consumption, and robust design suitable for various indicator, backlighting, or front panel applications. Engineered for durability, this green LED provides excellent optical performance and versatile mounting options for seamless integration into electronic devices. Order now to ensure reliable visual indicators and backlighting solutions with proven efficiency and quality, perfect for industrial, consumer, or automotive applications.
Get Avago HLMP-Y801-JPPxx today—built for high luminous intensity, reliable performance, and versatile mounting in indicator and backlighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMPY801JPP00?
You can click on the BUY or RFQ button to purchase HLMPY801JPP00 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPY801JPP00?
You can download the HLMPY801JPP00 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPY801JPP00?
BROADCOM
