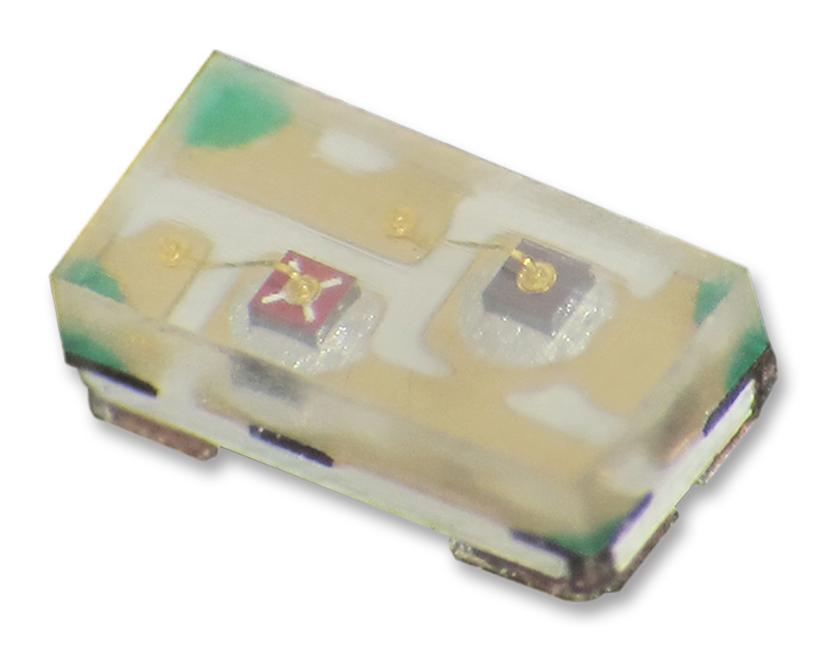

BROADCOM HSMFC163 Miniature Bi-Color LEDs
This series of bi-color surface mount ChipLEDs is designed for high-density component placement on small footprints. With dimensions of 1.6 mm x 0.8 mm x 0.5 mm, they are ideal for mobile device backlighting, indicators, and LCD illumination. They feature diffused optics, are compatible with reflow soldering, and offer a wide range of color options, including red, green, blue, amber, yellow, and orange. Operating within -40°C to +85°C, these LEDs are suitable for various electronic applications, providing reliable performance and easy assembly.
BROADCOM HSMFC163 Miniature Bi-Color LEDs Specifications:
- Dimensions: 1.6 mm x 0.8 mm x 0.5 mm
- Operating Temperature Range: -40°C to +85°C
- Forward Current: 10-20 mA depending on color
- Power Dissipation: 38-52 mW
- Reverse Voltage: 5 V
- Package: Tape and reel with 4000 units per reel
- Diffused optics for uniform light output
- Compatible with reflow soldering
- Color options include Red, Amber, Green, Blue, Yellow, Orange
- Luminous intensity: 2.8–45 mcd depending on color and current
- Peak Wavelength: 468-637 nm depending on color
- Viewing Angle: 120°
- Junction Temperature: 95°C
- ESD Sensitivity: Class 1A (per JESD22-A114C)
- Storage Temperature Range: -40°C to +85°C
Buy the Avago HSMF-C16x – Reliable Bi-Color Surface Mount LEDs for Industrial Applications
Experience high-quality miniature bi-color surface mount LEDs perfect for backlighting, indicators, and display illumination in various electronic devices. Shipping in tape and reel, these compact 1.6 mm x 0.8 mm components support reflow soldering and offer a versatile range of colors including red, green, blue, amber, yellow, and orange. Operating reliably from -40°C to +85°C, they ensure optimal performance and easy integration into mobile phones, keypads, and front panels. Purchase online now for fast delivery and reliable performance.
Get Avago HSMF-C16x today—built for precision and long-lasting durability in mobile and backlit electronic projects.
Frequently Asked Questions
Where can I buy BROADCOM HSMFC163?
You can click on the BUY or RFQ button to purchase HSMFC163 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMFC163?
You can download the HSMFC163 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMFC163?
BROADCOM
