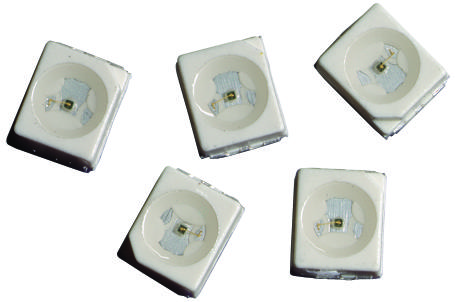

BROADCOM HSMMA100S00J1 LED Indicator
The HSMM-A100-S00J1 is a surface-mount LED indicator characterized by high reliability and designed to operate in a wide range of environmental conditions. Its high brightness is achieved through InGaN dice technology. The component is compatible with IR reflow soldering processes. It is suitable for applications in automotive lighting, interior signage, automation and process control, consumer electronics, and industrial settings. Please note that high market demand has resulted in extended lead times, and delivery dates may fluctuate. This product is exempt from discounts.
BROADCOM HSMMA100S00J1 LED Indicator Specifications:
- Package: PLCC-2 surface-mount
- Technology: InGaN dice
- Viewing Angle: 120°
- Forward Voltage: Typ. 3.4V, Max. 4.0V at 20mA
- Reverse Voltage: 5V
- Operating Temperature: -55°C to +100°C
- Storage Temperature: -55°C to +100°C
- Power Dissipation: 114mW
- Peak Forward Current: 100mA
- Luminous Intensity: 500 mcd (typical)
- Color: Blue
- Dimensions: See package drawing, approximately 3.2 mm x 2.8 mm
- Compatibility: IR reflow, through-the-wave soldering
- Humidity Sensitivity Level: 2a
- Lead Time: Extended due to high market demand
- Compliance: RoHS 6, Lead (Pb)-Free
Buy the Buy Broadcom LED Indicator Part Number HSMMA100S00J1 Online
Purchase the high-reliability LED indicator online today. Designed with InGaN technology for superior brightness and performance in automotive, signage, industrial, and electronics applications. Compatible with IR reflow soldering and suitable for harsh environments, this surface-mount component ensures long-lasting durability. Ideal for backlighting, panel indicators, and electronic signs, the HSMMA100S00J1 offers exceptional visibility with a 120° viewing angle. Order now to enhance your projects with proven quality and fast delivery.
Get Broadcom HSMMA100S00J1 today—built for high reliability, wide environmental range, and easy surface-mount installation.
Frequently Asked Questions
Where can I buy BROADCOM HSMMA100S00J1?
You can click on the BUY or RFQ button to purchase HSMMA100S00J1 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMMA100S00J1?
You can download the HSMMA100S00J1 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMMA100S00J1?
BROADCOM
