BROADCOM HFBR2522ETZ Fiber Optic Link Module
The HFBR-2522ETZ series is a versatile fiber optic link component designed for industrial, automotive, and communication applications. Featuring a 660 nm LED transmitter with a monolithic digital IC receiver, it provides reliable data transmission over up to 43 meters at 1MBd, with high noise immunity and low power consumption. Suitable for high-volume assembly, the component operates from -40°C to 85°C and is RoHS compliant. Its compact, stackable package makes it ideal for challenging environments requiring electrical isolation, EMI/RFI immunity, and secure data transfer in industrial drives, renewable energy, and EMC systems.
BROADCOM HFBR2522ETZ Fiber Optic Link Module Specifications:
- Wavelength: 660 nm
- Output Power: -16.8 to 80 dBm
- Optical Power Level for Logic 0: -216 to -8.7 dBm
- Receiver Input Optical Power: -216 to -9.5 dBm
- Link Distance: Up to 43 m at 1MBd, 20 m at SMBd
- Operating Temperature: -40°C to 85°C
- Supply Voltage: 4.75 V to 5.25 V
- Forward Voltage: 1.67 to 2.05 V
- Rise/Fall Time: 20 ns
- Internal Pull-up Resistor: 680 to 1700 ohms
- Soldering Temp: 260°C for 10 sec
- Moisture Sensitivity: MSL-3
- Connector: Designed for simplex, duplex, and latching connectors
- Package: Flame-retardant VALOX UL 94 V-0, stackable, stackable options available
- Dimensions: As per modular footprint, stackable design, with mounting holes for vertical and horizontal applications

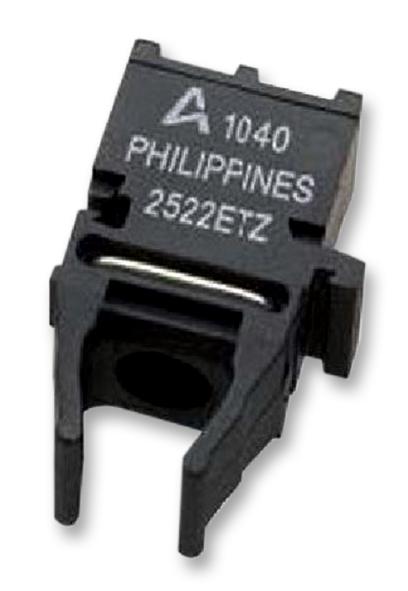

Buy the Broadcom Series Versatile Link: HFBR2522ETZ
Purchase the Broadcom HFBR-2522ETZ fiber optic link module online today. Designed for industrial, automotive, and communication systems, it guarantees high reliability over distances up to 43 meters. With a 660 nm LED transmitter, compatible with standard TTL circuitry, and operation from -40°C to 85°C, this compact, RoHS-compliant component offers low power consumption, high noise immunity, and easy stackable options. Perfect for automation, renewable energy, and EMC applications, ensuring secure and error-free data transfer in demanding environments.
Get Broadcom HFBR-2522ETZ today—built for precision, long-lasting durability, and reliable industrial data communication.
Frequently Asked Questions
Where can I buy BROADCOM HFBR2522ETZ?
You can click on the BUY or RFQ button to purchase HFBR2522ETZ from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR2522ETZ?
You can download the HFBR2522ETZ datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR2522ETZ?
BROADCOM
