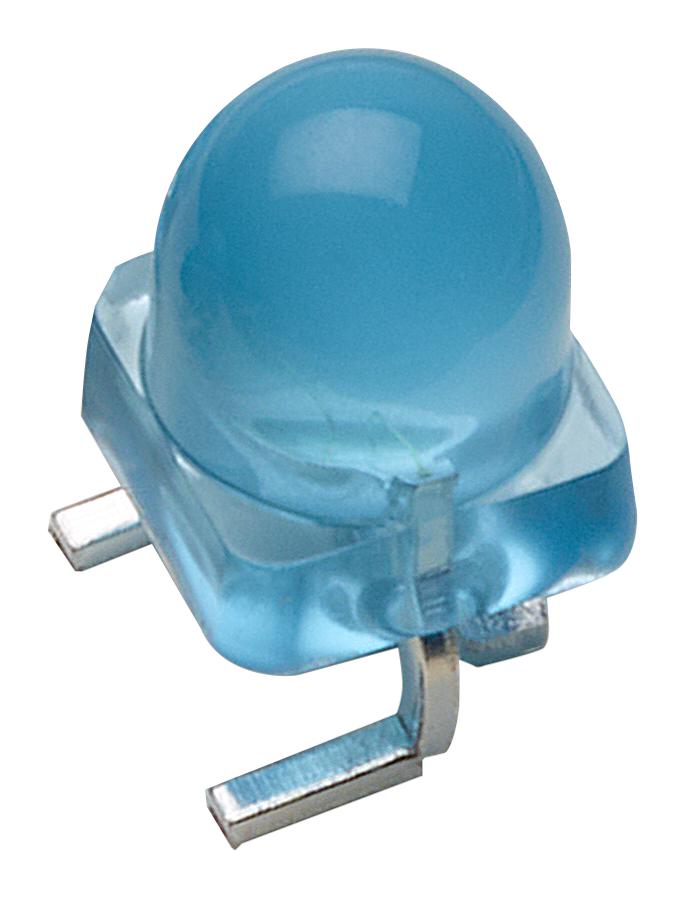

BROADCOM AEMDCB3LST002 Surface-mount LED
High brightness surface-mount LEDs emitting green and blue light, designed for outdoor and signage applications. These LEDs feature advanced optical epoxy, a 33° viewing angle, and are compatible with industrial reflow soldering processes. They are shipped in tape and reel for easy assembly, with strict handling precautions to prevent moisture damage and ensure persistent performance. Suitable for monocolor signs, variable message signs, and outdoor displays, these LEDs provide reliable, high-intensity illumination with precise color and optical characteristics. They operate within specified thermal and electrical limits to ensure longevity and performance.
BROADCOM AEMDCB3LST002 Surface-mount LED Specifications:
- Color: Green, Blue
- Viewing Angle: 33°
- Package Type: SMT round
- Mounting: Surface-mount, reflow solderable
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Maximum Forward Current: Green 30mA, Blue 20mA
- Peak Forward Current: 100mA
- Power Dissipation: Green 114mW, Blue 76mW
- Junction Temperature: 110°C
- Reverse Voltage: Not recommended
- Thermal Resistance: Green 270°C/W, Blue 480°C/W
- Dominant Wavelength: Green 519-539nm, Blue 460-480nm
- Luminous Intensity: Green 12000-21000 med, Blue 1900-3200 med
- Maximum Soldering Temperature: 315°C for 3 seconds
- Moisture Sensitivity Level: 3
- Packaging: Tape and reel, tested at 20mA
Buy the Broadcom AEMD-CB3L – Reliable Blue SMT LED for Industrial Applications
Enhance your signage projects with Broadcom's high-brightness green and blue surface-mount LEDs. These reliable, SMT-compatible LEDs are perfect for outdoor signs, variable message displays, and illumination solutions. Delivered in tape and reel, they facilitate easy automation and assembly. Designed to operate within specific thermal and electrical limits, ensuring long-lasting performance. Their advanced optical epoxy and precise color characteristics make them ideal for professional lighting and display applications. Purchase online now for fast delivery and consistent quality.
Buy Broadcom AEMD-CB3L now and experience unmatched reliability and performance in outdoor signage and lighting applications.
