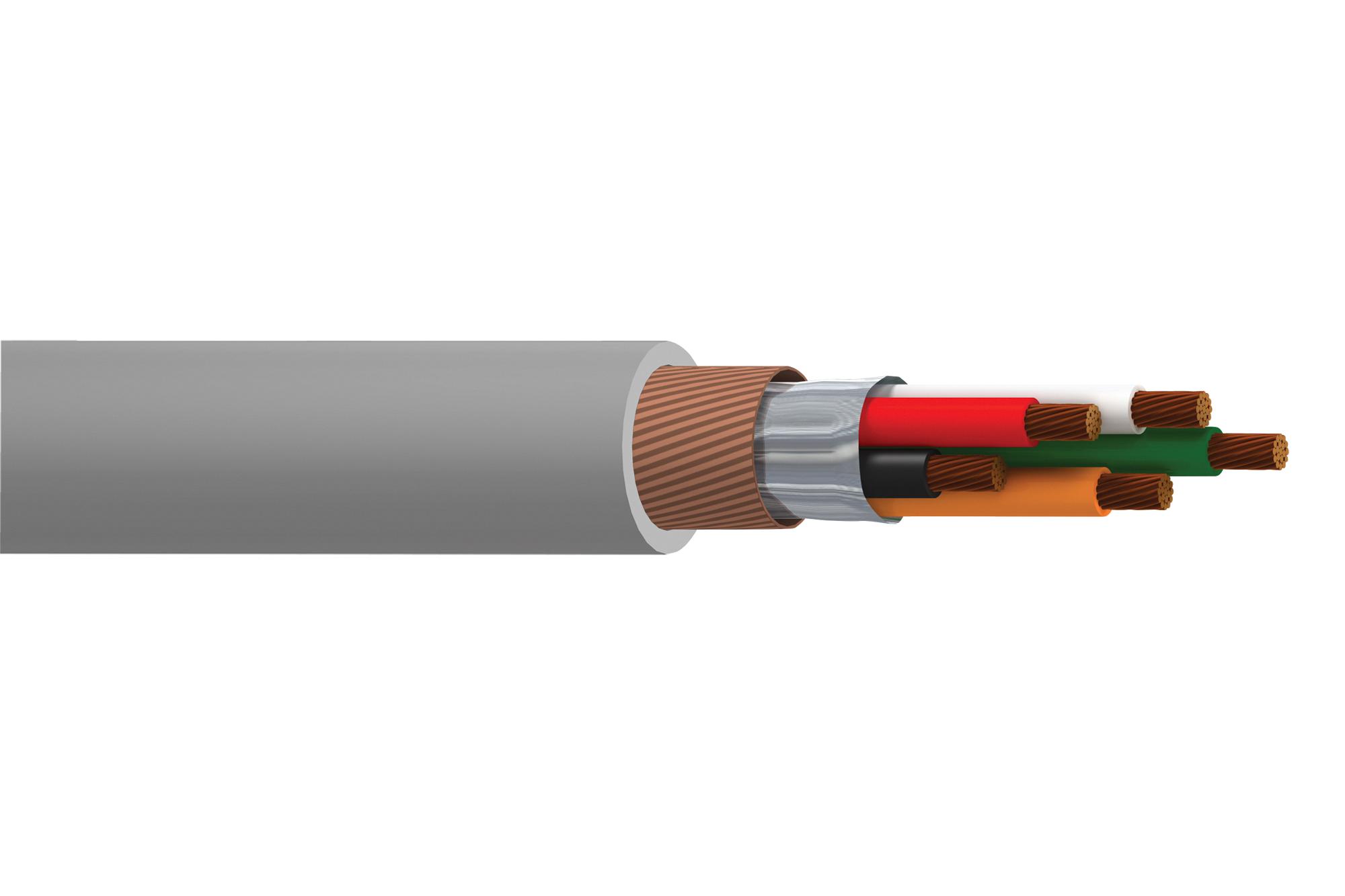

BELDEN 76307WS0081000 Multi-Conductor Cable
The Belden 76307WS multi-conductor cable is a versatile solution for data transmission in environments requiring flexibility and durability. Constructed with 22 AWG stranded tinned copper conductors, PVC insulation, and a robust outer jacket, this cable is designed to withstand continuous flexing and harsh conditions. The aluminum/polyester foil and tinned copper spiral shields provide excellent electromagnetic interference (EMI) protection, ensuring reliable data transfer. Ideal for applications such as robotics, factory automation, and dynamic data links, the 76307WS offers a long service life and dependable performance.
BELDEN 76307WS0081000 Multi-Conductor Cable Specifications:
- AWG: 22
- Number of Conductors: 7
- Conductor Material: TC - Tinned Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.254
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Wall Thickness (mm): 1.016
- Overall Nominal Diameter: 7.112 mm
- Bulk Cable Weight: 78.875 Kg/Km
- Max. Recommended Pulling Tension: 213.514 N
- Min. Bend Radius/Minor Axis: 55.880 mm
- Min. Bend/Installation: 55.880 mm
- Flex Cycle Rating: 6 Million Flexes
- Nominal Inductance (µH/m): 0.558
- Nominal Capacitance (pF/m): 0.001 @ 124.678 MHz
- Nominal Conductor DC Resistance (Ohm/km): 50.527
- Nominal Outer Shield DC Resistance (Ohm/km): 11.812
- Max. Operating Voltage - UL: 300V
- Temperature Range (static): -10 to 105°C
- Temperature Range (dynamic): +5 to 105°C
- NEC/(UL) Specification: CM
- CEC/C(UL) Specification: CMG
- EU Directive 2011/65/EU (ROHS II): Yes
- MII Order #39 (China RoHS): Yes
- CSA Flame Test: FT4
Buy the 76307WS 0081000 Belden Multi-Conductor Cable | myMectronic
Purchase the Belden 76307WS Multi-Conductor Cable securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy BELDEN 76307WS0081000?
You can click on the BUY or RFQ button to purchase 76307WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76307WS0081000?
You can download the 76307WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76307WS0081000?
BELDEN
