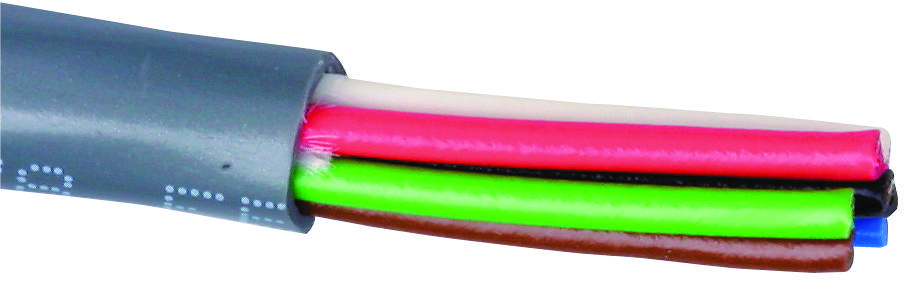

BELDEN 8465060100 Multi-Conductor Cable
The 8465 060100 is a 5-conductor unshielded cable suitable for audio, control, and instrumentation applications. It features PVC insulation, tinned copper conductors, and a PVC jacket. The cable offers reliable performance with a maximum current of 4 amps per conductor at 25°C and an operating temperature range from -20°C to +60°C. It is ideal for audio signal transmission, motor control, sensing, and instrumentation tasks, adhering to safety standards like UL and CSA flame tests, and compliant with EU RoHS, WEEE, and other environmental directives. Durable and flexible, it is suited for industrial wiring needs.
BELDEN 8465060100 Multi-Conductor Cable Specifications:
- Number of Conductors: 5
- Conductor Material: Tinned Copper (19x30 strands)
- Conductor Size: 18 AWG
- Insulation Material: PVC
- Outer Jacket Material: PVC
- Nominal Diameter: 0.282 inches
- Operating Temperature Range: -20°C to +60°C
- Max. Recommended Pulling Tension: 125 lbs
- Bulk Cable Weight: 50 lbs/1000 ft
- Max. Operating Voltage: 300 V RMS (UL AWM Style 2598)
- Max. Current per Conductor: 4 Amps at 25°C
- Capacitance Conductor to Conductor: 26 pF/ft
- DC Resistance: 6.3 ohms per 1000 ft at 20°C
- UL Flame Test: UL1685 FTA Loading
- CSA Flame Test: FT4
- Not Plenum: No
- Applicable Standards & Compliance: UL, CSA, RoHS, WEEE, EU Directives
- Temperature Rating: -20°C to +60°C
- Overall Diameter: 0.282 in
- Insulation and Jacket UL Ratings: UL Style 2598 (300 V, 60°C)
Buy the Belden Series 8465 Audio Control Instrumentation Cable: 8465060100
Purchase the Belden 8465 060100 multi-conductor cable online today to ensure high-quality audio, control, and instrumentation wiring. Crafted with 18 AWG tinned copper conductors, PVC insulation, and a PVC jacket, this cable provides excellent flexibility, safety, and durability for industrial applications. It supports up to 4 amps per conductor and operates within a temperature range of -20°C to +60°C, meeting stringent safety standards like UL1685 and CSA FT4. Ideal for signal transmission, motor control, and sensing, buy online now for fast, reliable delivery.
Buy Belden 8465 060100 now and experience unmatched reliability and performance with durable, UL-listed cable ideal for audio, control, and instrumentation tasks.
Frequently Asked Questions
Where can I buy BELDEN 8465060100?
You can click on the BUY or RFQ button to purchase 8465060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8465060100?
You can download the 8465060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8465060100?
BELDEN
