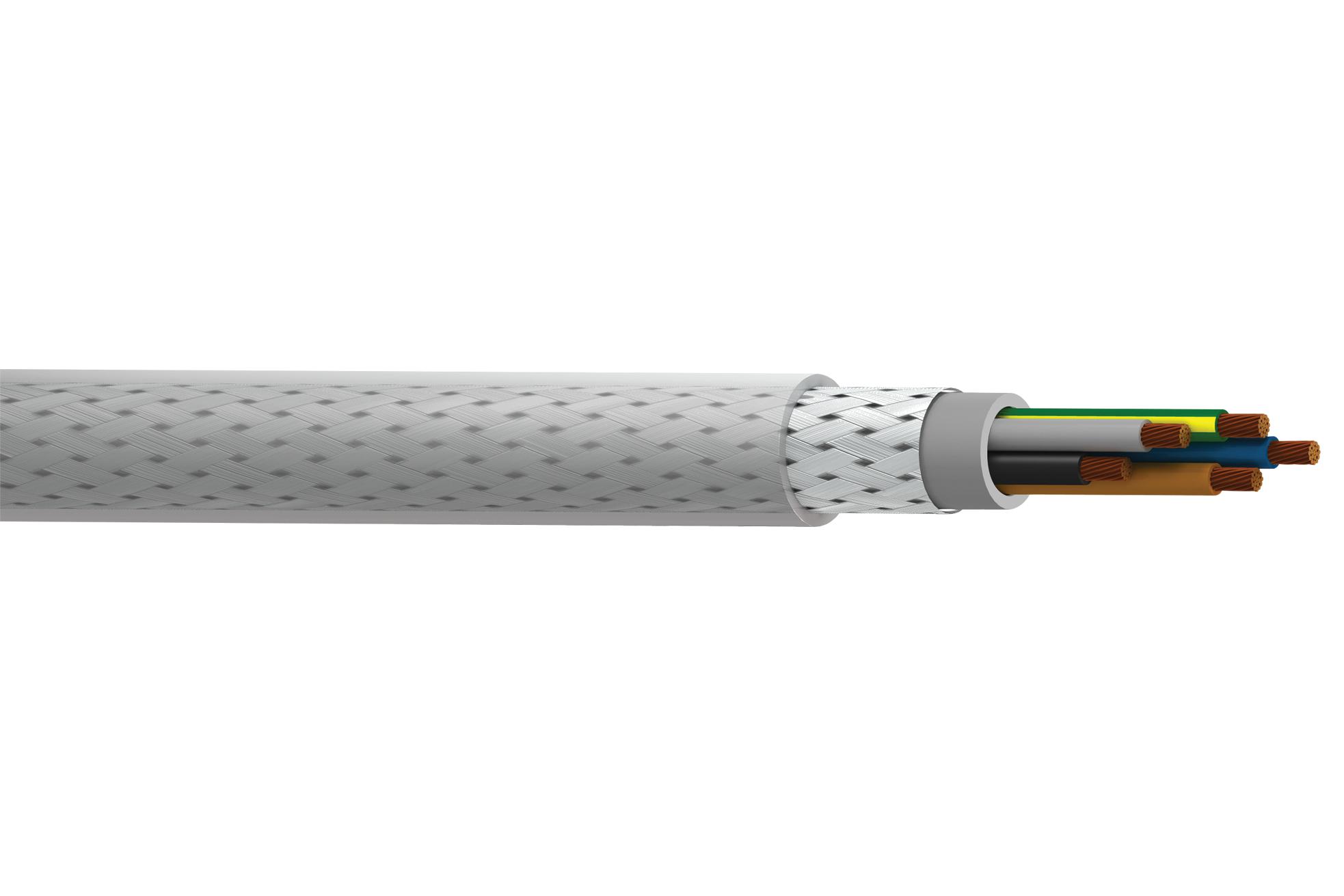

Belden C4GECYK500 Control Cable
The C4GECYK500 is a shielded control cable featuring a tinned copper braid shield for excellent noise immunity. Designed for in occasional flexing and fixed locations, it suits applications like control sensors, automation machinery, temperature controllers, and motor speed controls. Constructed with stranded bare copper conductors, PVC insulations, and a PVC sheath, it provides reliable performance under voltage ratings up to 750 V and temperature ranges from -40°C to +80°C. Its durable, flame-retardant, oil-resistant, UV, and chemical-resistant properties ensure long-term operational stability in industrial environments.
Belden C4GECYK500 Control Cable Specifications:
- Conductor Material: Stranded bare copper
- Insulation Material & Colour: PVC (colour-coded up to 5 cores, Belden colour code from 6 cores)
- Braid Shield Material: Tinned Copper Braid Shield
- Jacket / Sheath Material: PVC
- Flame Retardancy: VDE 0482-332-1-2, DIN EN 60332-1-2
- Voltage Rating: Up to 1.5 mm: 300 / 500 V; From 2.5 mm: 450 / 750 V
- Temperature Range: -40°C to +80°C
- Bending Radius: Fixed installation: 6 x OD; Occasional movement: 20 x OD
- Properties: Good UV, chemical resistance, flexibility, oil-resistant
- Application: Suitable for control sensors, multi-axis control machines, temperature controllers, control panels, motor control, production machinery
Buy the Belden 4GECYK500 – Reliable Control Cable for Industrial Applications
Enhance your industrial control systems with the Belden 4GECYK500 control cable, featuring a tinned copper braid shield for excellent noise immunity and durability. Designed for fixed and flexible installations, it offers high voltage ratings up to 750 V, temperature tolerance from -40°C to +80°C, and flame-retardant, oil-resistant, UV, and chemical-resistant properties. Ideal for control sensors, automation, speed control, and machinery, this cable guarantees reliable performance in challenging industrial environments, ensuring safety, long life, and seamless operation.
Order your Belden Series 4GECYK500 control cable today and ensure your industrial projects benefit from dependable noise immunity and robust construction.
Frequently Asked Questions
Where can I buy Belden C4GECYK500?
You can click on the BUY or RFQ button to purchase C4GECYK500 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part C4GECYK500?
You can download the C4GECYK500 datasheet or visit the Belden website for support.
Who is the manufacturer of C4GECYK500?
Belden
