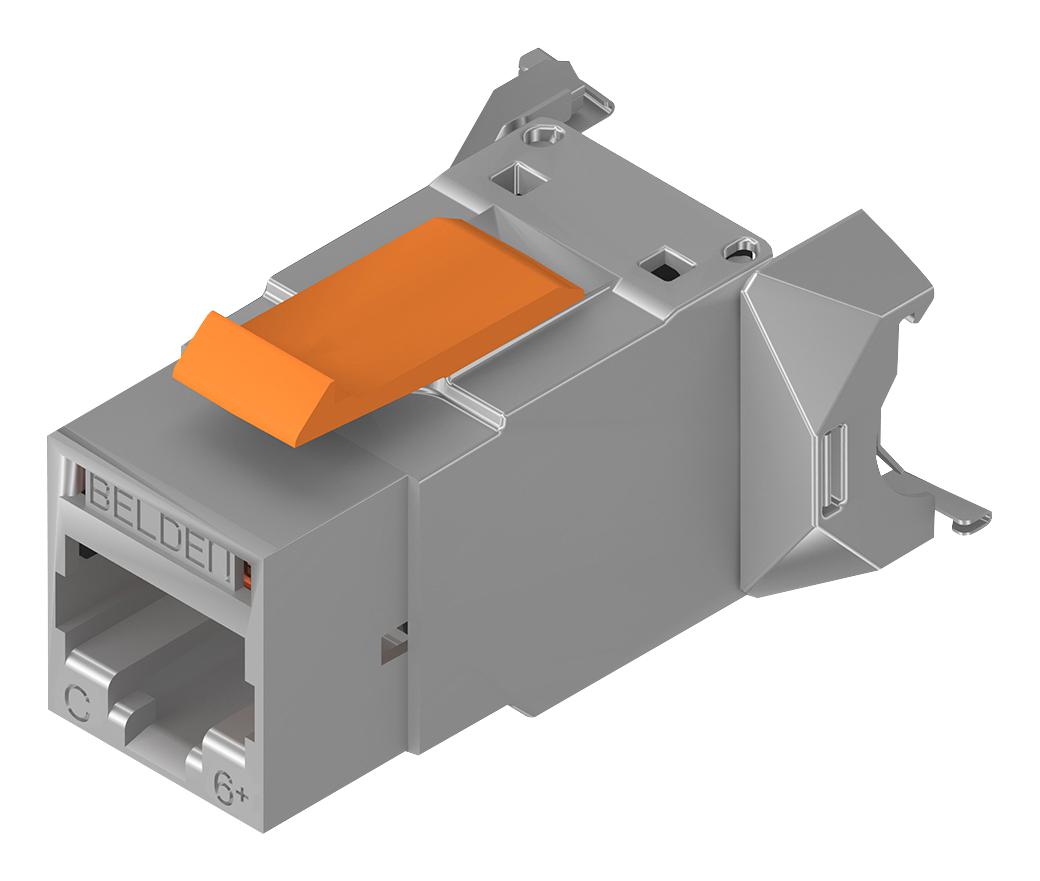

BELDEN RV6IJ2SMEB24 Shielded Ethernet Jack
The industrial REVConnect CAT6+ shielded modular jack offers robust performance with T568 A/B wiring scheme, compatible with shielded keyconnect panels and faceplates. Made with copper clad flexible PCB contacts, nickel-plated zinc alloy body, and copper alloy rear connections, this plug is designed for high durability, easy installation, and reliable signal integrity in shielded Ethernet systems up to 1Gbps. It supports various standards including UL, IEEE PoE, and RoHS, suitable for industrial networking, data centers, and harsh environments, ensuring long-lasting connectivity reliability.
BELDEN RV6IJ2SMEB24 Shielded Ethernet Jack Specifications:
- Dimensions: not specified
- Materials: Copper clad flexible PCB contacts, nickel-plated zinc alloy diecast body, copper alloy rear connection
- Wiring Scheme: T568 A/B
- Weight: 0.048 lbs
- Connection Compatibility: RJ45, RJ11
- Cable/Connector Retention: 15 lbs
- Connector/Hardware Retention: 20 lbs
- Operating Temperature Range: -40°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- UL Rating: UL94V-0
- Power Over Ethernet (PoE): IEEE 802.3at, IEEE 802.3bt
- Flame Test: UL 2043 air handling spaces
- Dielectric Strength: 1,000 V RMS @ 60Hz
- Current Rating: 1.3 A
- Insulation Resistance: 500 M-Ohm minimum
- Maximum Contact Resistance: 20 m-Ohm
- Termination Resistance: 2.5 m-Ohm
Buy the Belden RV6IJ2SME-B24 – Reliable CAT6+ Shielded Modular Connector for Industrial Applications
Purchase the Belden RV6IJ2SME-B24 shielded Ethernet jack online today to ensure high-performance, reliable network connections in industrial environments. Designed with durable metal housing and gold-plated contacts, this modular connector supports T568 A/B wiring schemes and is compatible with shielded keyconnect panels, faceplates, and adapters. It features a robust copper alloy rear connection, excellent retention forces, and supports PoE standards up to 100W. Perfect for data centers, manufacturing facilities, and high-security network applications, offering long-lasting connectivity and easy installation.
Get Belden RV6IJ2SME-B24 today—built for precise data transmission and durable industrial networking robustness.
Frequently Asked Questions
Where can I buy BELDEN RV6IJ2SMEB24?
You can click on the BUY or RFQ button to purchase RV6IJ2SMEB24 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part RV6IJ2SMEB24?
You can download the RV6IJ2SMEB24 datasheet or visit the BELDEN website for support.
Who is the manufacturer of RV6IJ2SMEB24?
BELDEN
