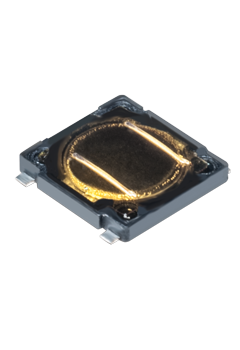

C&K COMPONENTS PTS530GS065SMTRLFS Ultra Low Profile SMT Switch
The C&K PTS530GS065SMTRLFS is a versatile ultra-low profile SMT (Surface Mount Technology) tactile switch, ideal for a wide range of applications including MP3 accessories, Bluetooth headsets, remote controls, and garage door openers. Its compact design, measuring just 4.5x4.5mm with a 0.55mm thickness, makes it suitable for devices where space is at a premium. The switch offers momentary action with a SPST (Single Pole Single Throw) Normally Open contact arrangement and features a gullwing termination for easy SMT assembly. It boasts a high cycle life and is designed for infrared reflow soldering, ensuring reliable performance in demanding environments.
C&K COMPONENTS PTS530GS065SMTRLFS Ultra Low Profile SMT Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: Gullwing for SMT
- Travel: 0.2mm - 0.1 /+ 0.15mm
- Operating Force: 600 - 50/+100
- Operating Life: 150,000 operations
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Temperature: -40˚C to 85˚C
- Soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- Footprint: 4.5 x 4.5 mm
- Thickness: 0.55 mm
Buy the PTS530GS065SMTRLFS C&K COMPONENTS Ultra Low Profile SMT Switch | myMectronic
Purchase the C&K PTS530GS065SMTRLFS securely and efficiently for your electronic projects.
