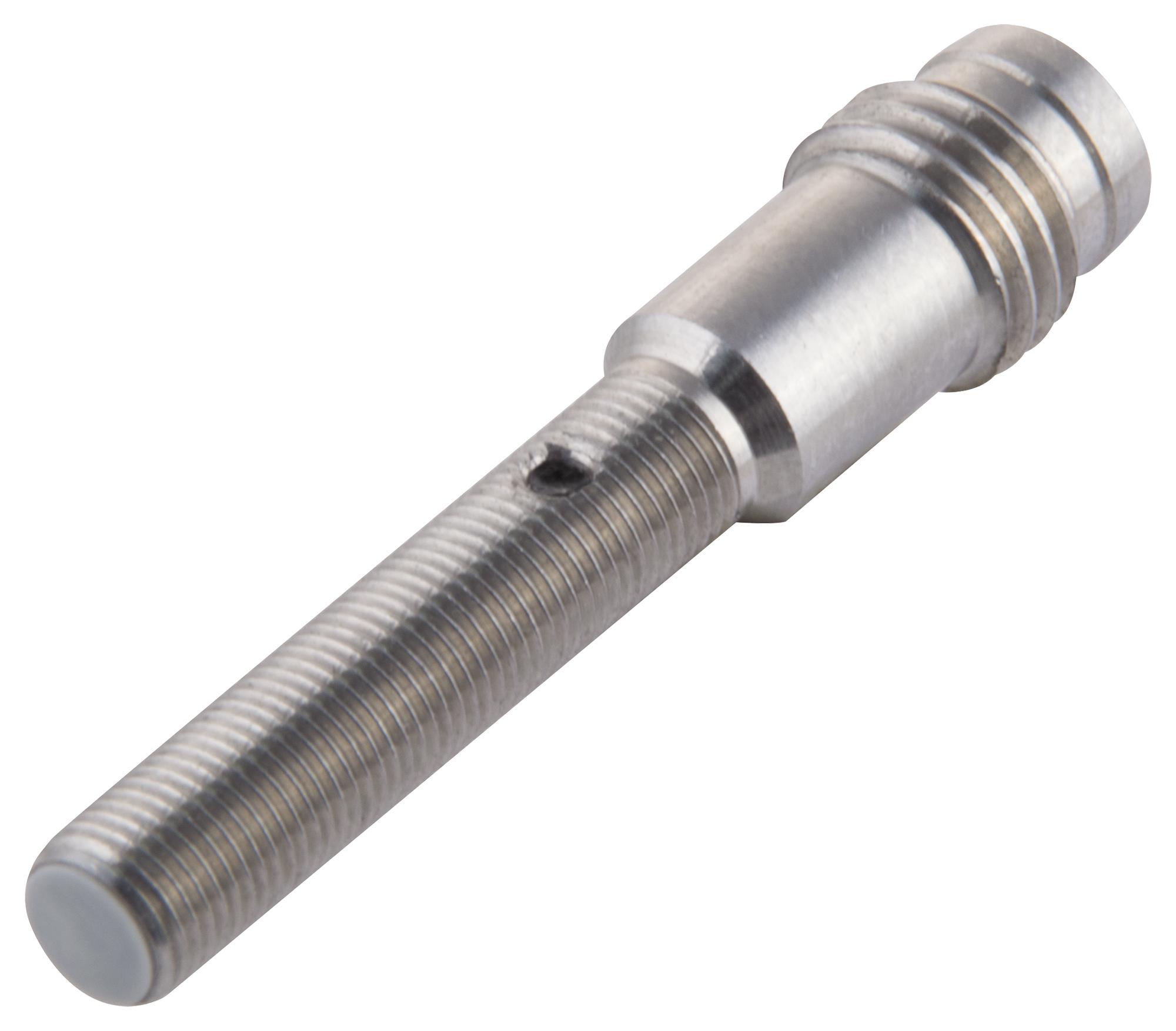

CARLO GAVAZZI ICS05S23F08M5NO Inductive Proximity Sensor
The ICS05 proximity sensor series features compact, stainless steel industrial sensors designed for limited spaces, offering high-speed detection up to 6 kHz. These inductive sensors can be configured via IO-Link for precise control, with an operating distance of 0.8 mm or 1.3 mm, suitable for automation, tool-selection, or robotic applications. They provide environmental stability, flush mounting, and customizable cable options, including M8-connectors and PVC cables. Their robust design and adjustable features make them ideal for micro-mechanism control and reliable position sensing in industrial environments.
CARLO GAVAZZI ICS05S23F08M5NO Inductive Proximity Sensor Specifications:
- Supply Voltage: 10 to 30 VDC
- Output Current: up to 100 mA
- Response Time: up to 6 kHz
- Operating Distance: 0.8 mm or 1.3 mm
- Temperature Range: -25°C to +70°C
- Degree of Protection: IP67
- Material: Stainless steel AISI 304 housing
- Connection: M8 connector or 2m PVC cable
- Output Type: Configurable PNP/NPN, N.O./N.C.
- Hysteresis: 1-20%, adjustable via IO-Link
- Environmental resistance: Vibration and shock resistant
- Certification: IEC standards, EMC compliance
Buy the Gavazzi Series ICS05 Inductive Proximity Sensor: ICS05S23F08M5NO
Order the Carlo Gavazzi ICS05 inductive proximity sensor now to enhance your automation system. This reliable, stainless steel sensor offers high-speed detection up to 6 kHz, with an adjustable sensing distance of 0.8 or 1.3mm for precise metal object detection. Designed for industrial environments, it can be configured via IO-Link, with options for PNP or NPN outputs. Its robust construction and easy installation make it suitable for space-constrained applications like robotics, tool control, and micro-mechanism sensing. Purchase online for fast delivery and optimal performance.
Get Carlo Gavazzi ICS05 sensor today—built for precision, durability, and flexible industrial automation.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS05S23F08M5NO?
You can click on the BUY or RFQ button to purchase ICS05S23F08M5NO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS05S23F08M5NO?
You can download the ICS05S23F08M5NO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS05S23F08M5NO?
CARLO GAVAZZI
