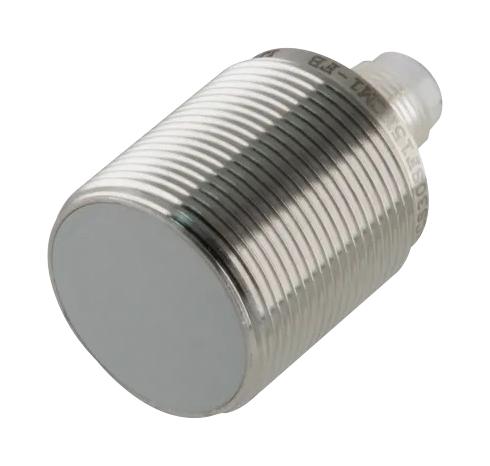

CARLO GAVAZZI ICS30SF10POM1FB Inductive Proximity Sensor
The ICS30SF10POM1FB is an IP69K and M30 stainless steel inductive proximity sensor designed for high-pressure washdown environments, certified for food and beverage applications. It features a sensing distance of 10 mm, normally open PNP output, and operates at 10 to 36 VDC with LED indicators for output status, short circuit, and overload. Robustly built with FDA-certified plastics and per IEC 60947-5-2 standards, it offers durability against chemicals, temperature extremes from -40°C to +85°C, and long-term reliable operation suitable for hazardous locations.
CARLO GAVAZZI ICS30SF10POM1FB Inductive Proximity Sensor Specifications:
- Housing Material: Stainless steel (AISI 316L)
- Sensing Distance: 10 mm
- Rated Operational Voltage: 10 - 36 VDC
- Output: PNP, Normally open
- Output Current: <200 mA @ 50°C
- Temperature Range: -40°C to +85°C
- Protection: IP69K, IEC 60947-5-2, reverse polarity, short circuit, transients
- Connection: M12x1.4 plug or straight connector
- Housing Dimensions: Length 47.5 mm, diameter 30 mm
- Degree of Protection: IP67, IP68, IP69K
- Shock & Vibration Resistance: IEC 60947-5-2/7.4
- Compliance: UL, CSA, FDA-certified plastic, suitable for hazardous locations
- Effective Operating Distance: 0.9 x S, with sensing distance S of 10 mm, considering reduction factors
- Operating Temperature: -40°C to +85°C
Buy the Buy Carlo Gavazzi Inductive Proximity Sensor Part Number ICS30SF10POM1FB Online
Purchase the Carlo Gavazzi Inductive Proximity Sensor ICS30SF10POM1FB online today and enjoy durable, high-pressure washdown resistant detection. With stainless steel housing, FDA-certified plastic, sensing distance of 10mm, and operating temperature from -40°C to +85°C, it’s ideal for demanding environments like food and beverage processing. Easy to install, with LED indicators and IEC 60947-5-2 compliance, this sensor guarantees long-term reliability and safety in hazardous locations. Upgrade your automation system with this robust and certified component today.
Order your Carlo Gavazzi Series ICS30SF10POM1FB proximity sensor today and ensure reliable detection with high-pressure washdown resistance and FDA-certified materials.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS30SF10POM1FB?
You can click on the BUY or RFQ button to purchase ICS30SF10POM1FB from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS30SF10POM1FB?
You can download the ICS30SF10POM1FB datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS30SF10POM1FB?
CARLO GAVAZZI
