CARLO GAVAZZI LDI35AVOC0XXIX DC Measurement Controller
The DC current and voltage meter/controller model LDI35AVOC0XXIX is a 3 1/2-digit or 3-digit plus dummy zero, multi-range digital meter designed for precise DC measurements. It features selectable ranges including 200 mV, 20 V, 200 VDC, and 2 mA, 20 mADC, with a high-resolution 16-bit A/D converter sampling four times per second. Built with IP 50 protection and optional IP 65, it offers programmable scaling, password protection, alarm setpoints, and galvanic insulation. Suitable for industrial control, it includes a 7-segment LED display, keypad, and multiple power options ranging from 24 VAC to 240 VAC.
CARLO GAVAZZI LDI35AVOC0XXIX DC Measurement Controller Specifications:
- Display: 7-segment LED, 14.2 mm, 3 1/2 digits or 3 digits + dummy zero
- Input Ranges: 200mVDC, 20VDC, 200VDC, 2mADC, 20mADC
- Max. Indication: 1999 for 3 1/2 dgt, 9990 for 3 dgt + dummy zero
- Sampling Rate: 4 times/sec, dual slope, 16-bit A/D converter
- Overload Protection: 340 dgt, Max. 9990
- Input Voltage: 200 mVDC to 200 VDC, 2 mADC to 20 mADC
- Accuracy: ±0.3% of f.s., +1 dgt (@25°C + 5°C, R.H. < 60%)
- Temperature Drift: +200 ppm/°C
- Power Supply: 24 VAC to 240 VAC, 50/60Hz or 9-32 VDC, max inrush current <1.2A
- Output: Excitation voltage 15 VDC/40 mA max, relay output 1x SPDT, 5A, 250VAC/VDC
- Insulation: 4000 V between output and measuring input
- Degree of Protection: IP 50 (IP 65 on request), Dimensions: 48 x 96 x 83 mm
- Environmental Conditions: Operating 0° to 50°C, Storage -10° to 60°C
- Safety & EMC: Meets IEC standards, CE, CSA approvals

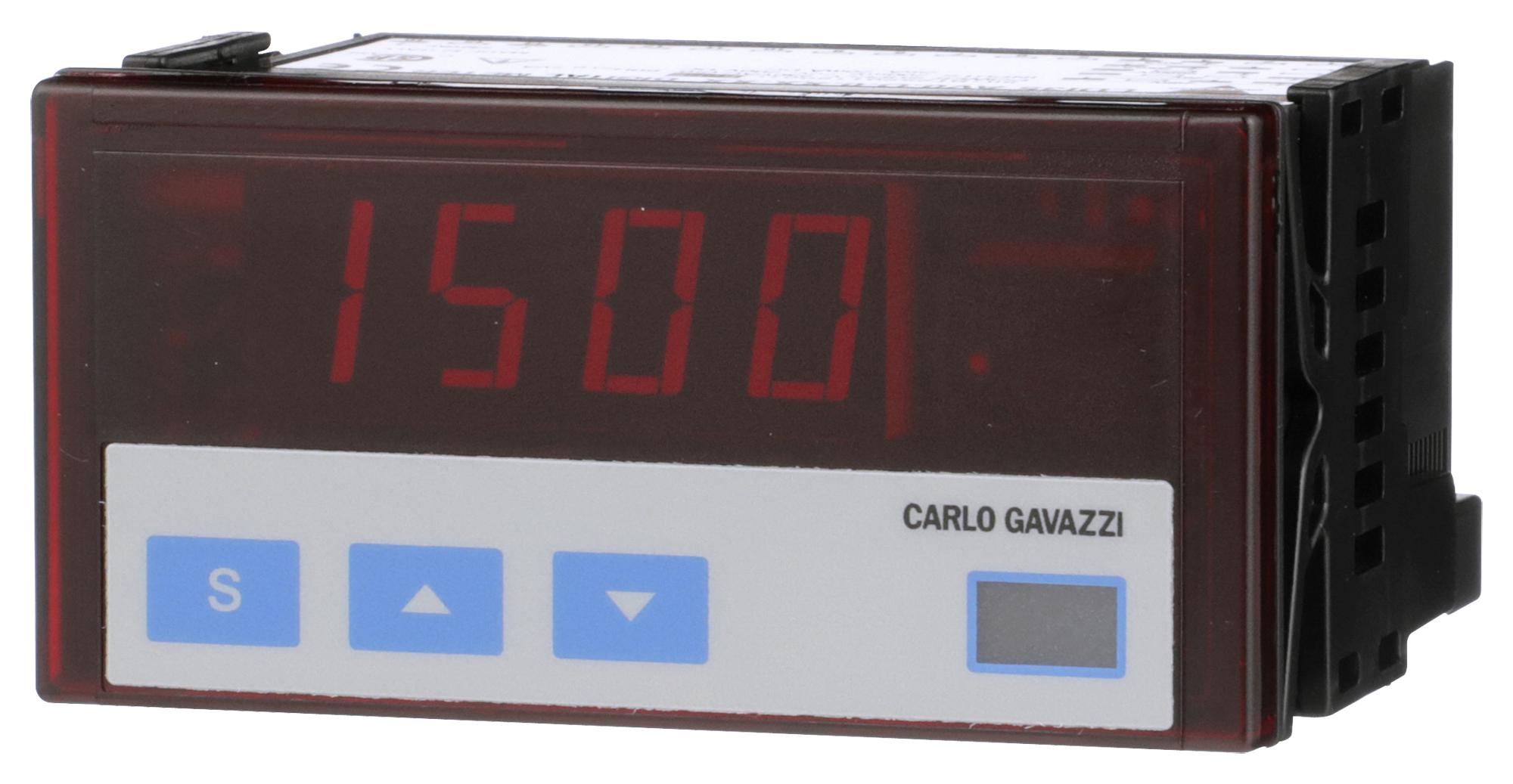

Buy the Buy Carlo Gavazzi DC Meter Controller Part Number LDI35AVOC0XXIX Online
Purchase the Carlo Gavazzi DC Measurement Controller online today and enjoy fast delivery and expert support. This robust device offers multi-range measurements with high accuracy, programmable alarm setpoints, and easy keypad operation. Suitable for industrial applications, it includes features like galvanic insulation, configurable scales, and optional IP65 protection. Its compact 48 x 96 mm size allows easy integration into control panels. Invest now to improve your measurement accuracy, operational reliability, and process control with this versatile and durable digital meter/controller.
Order your Carlo Gavazzi SeriesLDI35AVOC0XXIX high-precision DC meter controller today and ensure accurate, reliable measurements for industrial projects.
