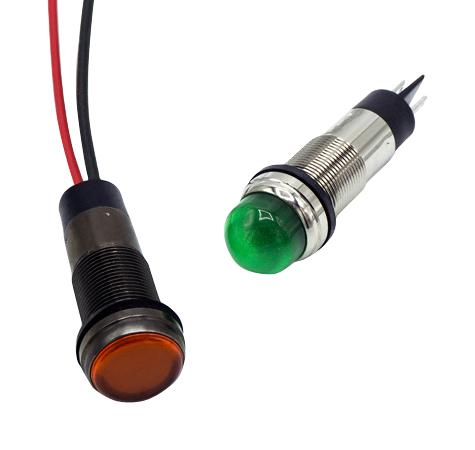

DIALIGHT 6561102303F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators provide reliable visual indication for a wide range of industrial applications, including safety systems, instrument panels, vending machines, and transportation equipment. These indicators are designed to withstand harsh environments, featuring UL1598, NEMA 4X, and IP66/67 ratings. They are available in single and bi-color configurations, with various voltage options and termination choices like wire leads or blade terminals, ensuring versatility for diverse integration needs. The robust housing and lens material contribute to long-term durability and performance.
DIALIGHT 6561102303F Panel Mount LED Indicator Specifications:
- Certifications: UL1598, NEMA 4X, IP66/67
- RoHS Compliant: Yes (w/ 6C exemption)
- Application: Safety Applications, Instrument Panels, Vending/Gaming, Display Lighting, Transportation
- Mounting Hole Size: 0.500" (12.7 mm) Max
- Panel Thickness: 0.450" (11.43 mm) Max
- Mounting Torque: 5 in-lbs
- Voltage Options: 5-125 V DC, 125, 230 V AC (bi-color 5, 12, 24 V DC)
- Operating Temperature: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temperature: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 110 Faston quick connect terminals or 6" wire leads
- Housing Material: Brass, White or Black Nickel Plated
- Lens Material: Transparent polycarbonate (UL 94V-0)
- Wire Leads: 18 AWG
- Lock Washer: Bronze, White or Black Nickel Plated
- Nut: Brass, White or Black Nickel Plated
Buy the 656-1102-303F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 656-1102-303F securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6561102303F?
You can click on the BUY or RFQ button to purchase 6561102303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6561102303F?
You can download the 6561102303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6561102303F?
DIALIGHT
