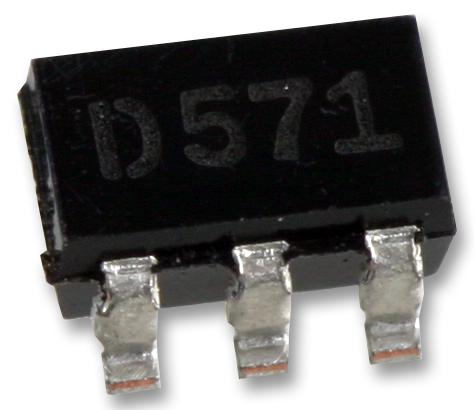

DIODES INC. D5V0P4UR6SO7 TVS Diode Array
The D5VOP4UR6SO is a four-channel low capacitance TVS diode array designed for high-speed port protection. Suitable for USB 2.0, HDMI, DVI, Serial ATA, and IEEE 1394 interfaces, it provides high ESD surge capability, low capacitance of 2.1pF, and is fully compliant with environmental standards. Assembled in a compact SOT26 package, this green device offers reliable protection against lightning, EFT, and ESD events, ensuring circuit durability and performance in sensitive electronic applications, especially where space and signal integrity are critical.
DIODES INC. D5V0P4UR6SO7 TVS Diode Array Specifications:
- Case: SOT26
- Peak Pulse Current IEC 61000-4-5: 20A VO to Vss, 45A Voc to Vss
- Peak Pulse Power: 180W
- Operating Voltage: 36V
- ESD Discharge: ±30kV (air/contact)
- Temperature Range: -55°C to +85°C
- Power Dissipation: 300mW
- Thermal Resistance: 417°C/W
- Reverse Working Voltage: 33V
- Reverse Leakage Current: 5A at 33V
- Reverse Breakdown Voltage: 45V
- Clamping Voltage: 12V at 15mA
- Channel Capacitance: 2.1pF typical
- Dimensions (mm): Length 2.4, Width 1.6, Height 1.0
- Moisture Sensitivity: Level 1
- RoHS & Halogen-Free
Buy the Diodes D5VOP4UR6SO – Reliable TVS Diode Array for Industrial Applications
Secure your high-speed electronic interfaces with the Diodes D5VOP4UR6SO TVS diode array. Designed for USB, HDMI, DVI, and other high-speed ports, this 4-channel array offers superior ESD protection, ultra-low capacitance, and environmental compliance. Its compact SOT26 package makes it ideal for space-constrained applications. Protect your devices from static, lightning, and EFT events reliably. Purchase online today to get fast delivery and trusted performance, ensuring circuit longevity and optimal function in demanding environments.
Order your Diodes Series D5VOP4UR6SO high-speed TVS protection device today and ensure your sensitive electronics are safeguarded against ESD, lightning, and EFT surges with dependable, eco-friendly components.
Frequently Asked Questions
Where can I buy DIODES INC. D5V0P4UR6SO7?
You can click on the BUY or RFQ button to purchase D5V0P4UR6SO7 from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part D5V0P4UR6SO7?
You can download the D5V0P4UR6SO7 datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of D5V0P4UR6SO7?
DIODES INC.
