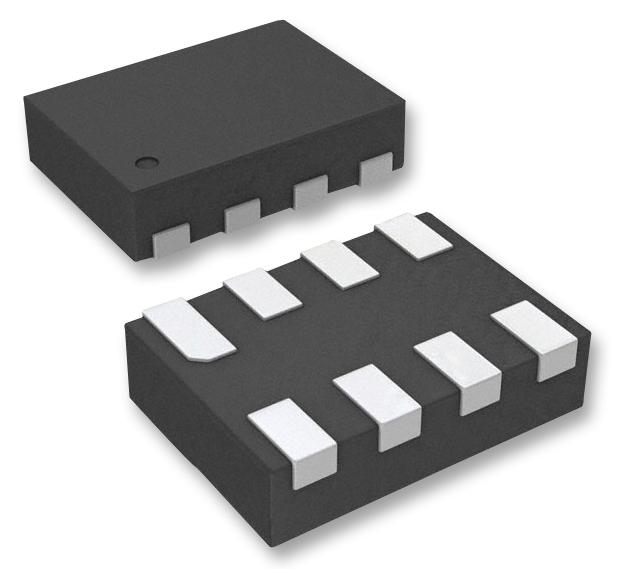

DIODES INC. 74LVCH2T45HK37 Voltage Translator
The 74LVCH2T45 is a dual-bit, dual-supply transceiver with tri-state outputs, suitable for voltage translation across 1.2V to 5.5V domains. It features bus hold inputs, high noise immunity, low power consumption, and supports partial-power-down mode operation. Designed for reliable voltage level translation, signal isolation, and power-down management, it is ideal for consumer electronics, networking, and automotive applications, supporting high data rates up to 420 Mbps, and compliant with RoHS, halogen, and antimony-free standards.
DIODES INC. 74LVCH2T45HK37 Voltage Translator Specifications:
- Supply Voltage Range: 1.2V to 5.5V (both ports)
- Output Drive: 24mA at 3.3V
- Low Power Consumption: 16uA maximum ICC
- Supported Data Rates: up to 420 Mbps at 3.3V
- Bus Hold Inputs: Maintains previous logic level
- ESD Protection: 4000V HBM, 1000V CDM
- Operating Temperature: -40°C to +125°C
- Package Types: X2-DFN1210-8, X2-DFN1410-8
- RoHS, Halogen, and Antimony Free, Fully Lead-Free
- Latch-up Current: >100mA
- Voltage Translation: Supports level shifting between voltages
- Power-Down Signal Isolation: Up to 5.5V voltage isolation when powered down
Buy the Diodes Series 74LVCH2T45 Voltage Translator: 74LVCH2T45HK37
Enhance your electronic projects with the Diodes 74LVCH2T45HK37 voltage translator. Offering dual-bit translation capabilities across 1.2V to 5.5V, it features bus hold inputs, tri-state outputs, and supports high data rates up to 420 Mbps. Its low power consumption and robust ESD protection ensure reliability in consumer electronics, networking, and automotive systems. Fully RoHS, halogen, and antimony-free, this device guarantees compliance with industry standards, making it an excellent choice for level shifting and signal isolation needs.
Buy Diodes 74LVCH2T45HK37 now and experience unmatched reliability and high-speed voltage translation for electronics and automotive applications.
