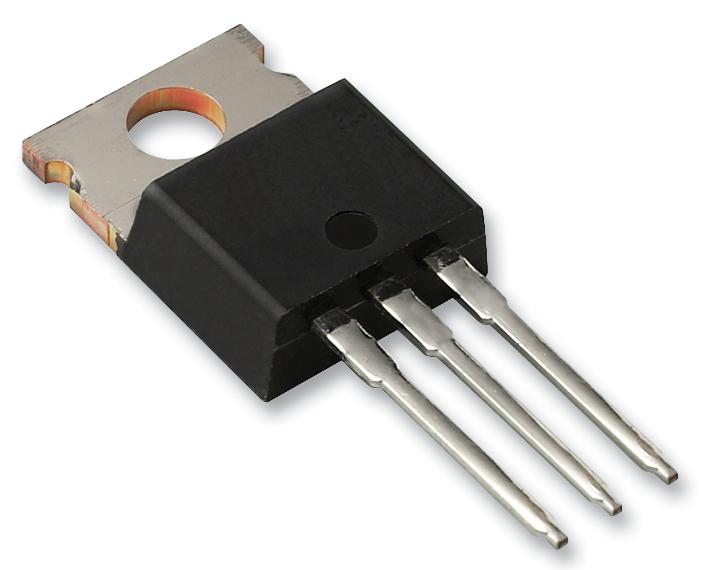

DIODES INC. DMN68M7SCT N-Channel Enhancement Mode MOSFET
The DIODES INC. DMN68M7SCT is a next-generation N-channel enhancement mode MOSFET engineered to minimize on-state resistance while maintaining excellent switching capabilities. This makes it a prime choice for high-efficiency power management applications such as motor control, backlighting, and DC-DC converters. The device is halogen-free, antimony-free, and RoHS compliant, ensuring environmental responsibility. It is also suitable for automotive applications requiring specific change control, with qualification to AEC-Q100/101/200 standards available upon request. The DMN68M7SCT offers a BVDSS of 68V, an RDS(ON) of 8.0mΩ at VGS=10V, and a continuous drain current of 100A at TC=25°C, providing robust performance in demanding power applications.
DIODES INC. DMN68M7SCT N-Channel Enhancement Mode MOSFET Specifications:
- BVDSS: 68V
- RDS(ON): 8.0mΩ @ VGS= 10V
- ID @ TC = +25°C: 100A
- UIS: 100% Unclamped Inductive Switch (UIS) Test in Production
- Input Capacitance: 4260pF @ VDS= 30V, VGS= 0V, f = 1.0MHz
- Input/Output Leakage: Low
- Lead-Free Finish: RoHS Compliant
- Halogen and Antimony Free: Green Device
- Case: TO220AB
- Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
- Terminal Finish: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
- Weight: 1.85 grams (Approximate)
- Maximum Continuous BodyDiode Forward Current: 100A
- Avalanche Current: 35A
- Avalanche Energy: 183mJ
- Power Dissipation: 125W @ TC = +25°C, 80W @ TC = +70°C
- Thermal Resistance, Junction to Case: 1.0 °C/W
- Operating and Storage Temperature Range: -55 to +150 °C
- Drain-Source Breakdown Voltage: 68V
- Zero Gate Voltage Drain Current: <1µA
- Gate-Source Leakage: <±100nA
- Gate Threshold Voltage: 1.3-3V
- Static Drain-Source On-Resistance: 6.2-8.0mΩ @ VGS= 10V, ID= 20A
- Diode Forward Voltage: 0.7-1.2V @ VGS= 0V, IS= 1A
- Output Capacitance: 430pF
- Reverse Transfer Capacitance: 198pF
- Gate Resistance: 1.75Ω @ VDS= 0V, VGS= 0V, f = 1.0MHz
- Total Gate Charge (VGS= 10V): 72.9nC @ VDD= 30V, ID= 20A
- Total Gate Charge (VGS= 4.5V): 36.0nC
- Gate-Source Charge: 8.0nC
- Gate-Drain Charge: 15.3nC
- Turn-On Delay Time: 6.3ns
- Turn-On Rise Time: 18ns
- Turn-Off Delay Time: 36ns
- Turn-Off Fall Time: 9.7ns
- Reverse Recovery Time: 31.4ns
- Reverse Recovery Charge: 30.1nC
