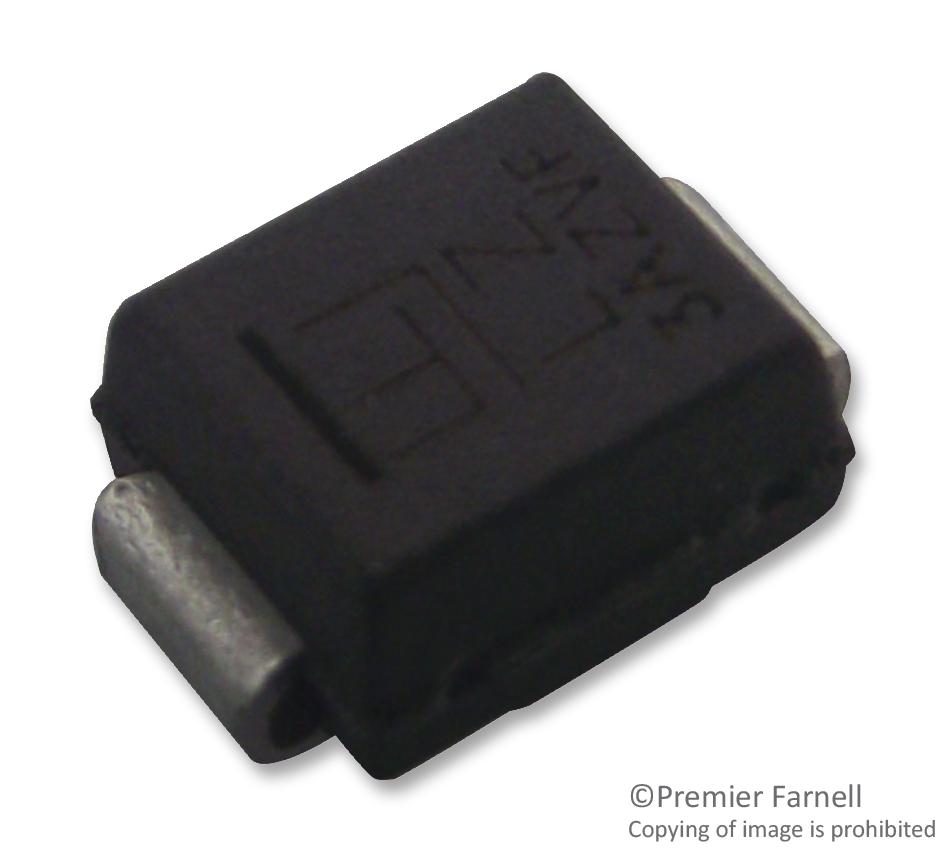

DIODES INC. S1AB13F Rectifier
The S1AB13F is a 1.0A surface mount glass passivated rectifier designed for high reliability in industrial power applications. It features a molded plastic case with UL 94V-0 flammability rating and RoHS compliance. The device supports surge overloads up to 30A, with a peak repetitive reverse voltage of 600V. Its lead-free matte tin-plated terminals are solderable per MIL-STD-202, Method 208@9, making it ideal for automated assembly processes. The rectifier operates within a temperature range of -65°C to +150°C, ensuring consistent performance under demanding conditions.
DIODES INC. S1AB13F Rectifier Specifications:
- Maximum Reverse Voltage: 600V
- Average Rectified Current: 1.0A
- Peak Surge Current: 30A for 8.3ms
- Temperature Range: -65°C to +150°C
- Thermal Resistance, Junction to Terminal: 30°C/W
- Flammability: UL 94V-0
- Case Material: Molded Plastic
- Case Sizes: SMA and SMB
- Lead Finish: Matte Tin, Lead-Free
- Moisture Sensitivity Level: 1 (J-STD-020)
- Polarity Indication: Cathode Band or Notch
- Solderability: MIL-STD-202, Method 208@9
- Weight: SMA - 0.064 grams, SMB - 0.093 grams
- Marking: Product Type Code, Manufacturer Code, Date Code
Buy the Diodes Series S1AB13F Rectifier: 600V 1A Surface Mount
Purchase the Diodes S1AB13F rectifier online today to benefit from its high surge capability, robust construction, and RoHS compliance. This surface-mount device provides a reliable solution for industrial power applications, supporting 1.0A current and sustaining peak surge currents up to 30A. Its glass passivated die construction ensures high reliability even under demanding conditions. With a compact molded plastic case, lead-free tin-plated terminals, and operation over a wide temperature range, this rectifier is ideal for automated assembly, offering ease of installation and consistent performance in industrial electronics and power supplies.
Order your Diodes Series S1AB13F high-reliability rectifier today and ensure your power circuits operate with dependable performance and compliance.
Frequently Asked Questions
Where can I buy DIODES INC. S1AB13F?
You can click on the BUY or RFQ button to purchase S1AB13F from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part S1AB13F?
You can download the S1AB13F datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of S1AB13F?
DIODES INC.
