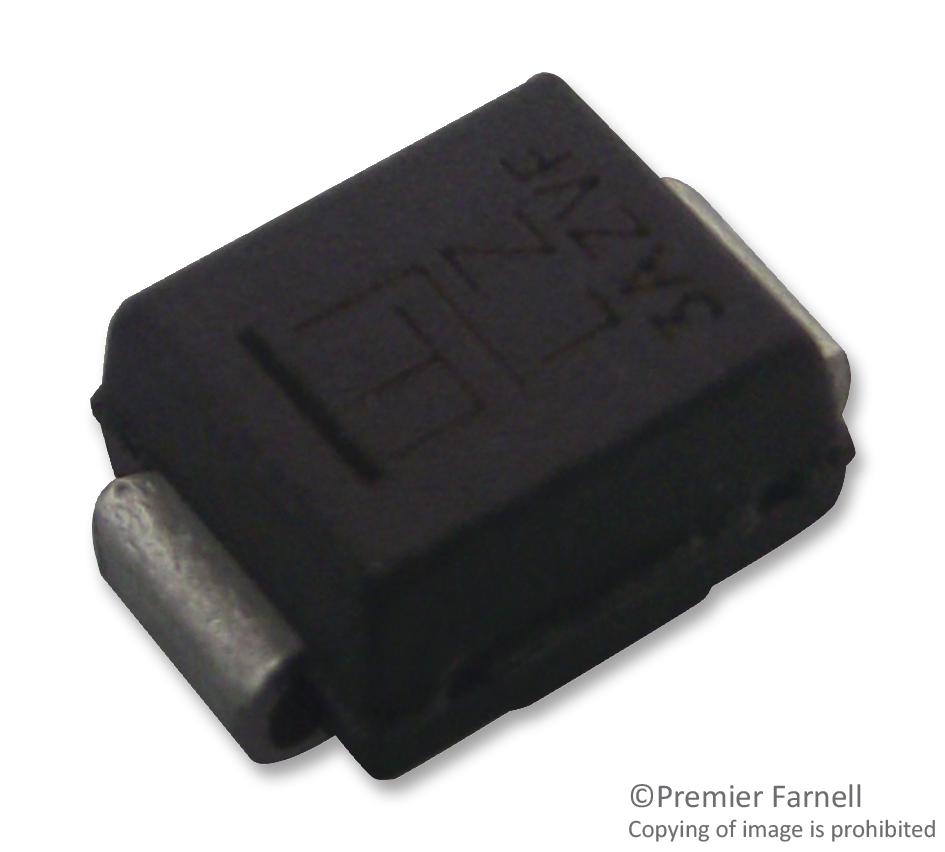

DIODES INC. S1B13F Surface Mount Rectifier
The S1B13F is a 1.0A surface mount glass passivated rectifier designed for high reliability in various electronic applications. It features a molded plastic case, UL flammability classification 94V-0, and lead-free tin-plated terminals, making it suitable for automated assembly and environmentally friendly designs. With a surge overload rating of 30A and a maximum reverse voltage of 1000V, it ensures robust performance under harsh conditions. Compact and lightweight, it is ideal for power supply, switching, and rectification circuits requiring dependable, RoHS-compliant components.
DIODES INC. S1B13F Surface Mount Rectifier Specifications:
- Maximum DC blocking voltage: 1000V
- Average rectified current: 1.0A
- Peak surge current: 30A (8.3ms sine wave)
- Case: SMA or SMB, molded plastic
- Flammability rating: UL 94V-0
- Lead-free finish; matte tin-plated terminals
- Temperature range: -65°C to +150°C
- Thermal resistance junction to terminal: 30°C/W
- Moisture sensitivity level: Level 1
- Polarity indication: Cathode band or notch
Buy the Diodes 1.0A Surface Mount – Reliable Rectifier for Industrial Applications
Purchase the Diodes S1B13F surface mount rectifier online today to secure a high-quality, RoHS-compliant component with a surge rating of 30A and a maximum reverse voltage of 1000V. Ideal for power supply, rectification, and switching applications, this compact and environmentally friendly device offers exceptional reliability and efficiency with lead-free terminals, UL flammability certification, and excellent thermal stability. Ensure your projects meet stringent standards by ordering this dependable rectifier now for fast delivery and optimal performance.
Order your Diodes series S1B13F 1.0A surface mount rectifier today and ensure your power circuits boast dependable, high-reliability performance for industrial projects.
Frequently Asked Questions
Where can I buy DIODES INC. S1B13F?
You can click on the BUY or RFQ button to purchase S1B13F from an authorized DIODES INC. distributor.
How do I troubleshoot issues or seek technical support for part S1B13F?
You can download the S1B13F datasheet or visit the DIODES INC. website for support.
Who is the manufacturer of S1B13F?
DIODES INC.
